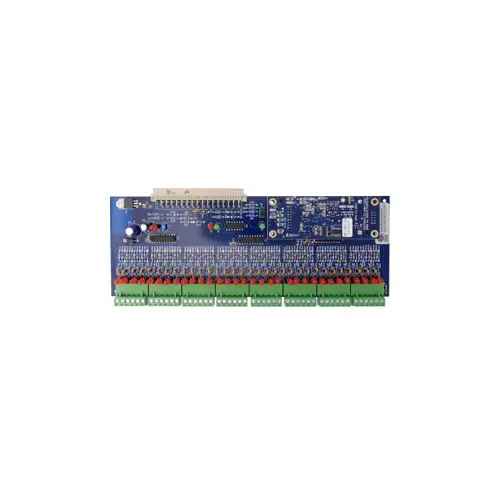

OSSI DMC-MLC-32I I/O Control Panel 32 Inputs

Item #: DMC-MLC-32I by OSSI

See reviewsSee reviews
HURRY! Low in stock

$1,857.70

/each
SAVE UP TO 185.77

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

161355

Product Overview

Overland Safety Systems Control Panel

Part No. DMC-MLC-32I

This is part of OSSI’s Complete PSIM Solution. This Smart Programmable Logic Controller (SPLC) is built specifically for monitoring system inputs, both analog and digital. The panel supports peer to peer communication and ladder logic programming providing ultimate flexibility. The distributed processing and peer to peer communications provide a redundant robust solution that continues to function regardless of the condition of the rest of the system.

PROGRAMMING

  • User-definable ladder logic programming allows system operation to be configured to the needs of the application
  • All points are programmable and can be triggered from system events or Inputs from other controllers

    • OPERATIONS

  • Standalone processor
  • Program stored in flash memory
  • Real-time clock for time/date based operation
  • Peer-to-peer capability

    • POWER

  • 12-15 VDC
  • 70 mA base current
  • 15 mA per activated input
  • 550 mA maximum draw
  • Memory backup - 6 months

    • DATA

  • 78 KBPS Free Topology twisted pair transceiver provides connection to host and peer-to-peer communications between panels

    • TERMINATION

  • Communications through rack mount
  • Removable Screw Terminals for up to 14 AWG

    • INPUTS

  • 32 Programmable Inputs
  • Supervised and non-supervised
  • Binary capability for event alarms
  • Analog capability for temperature, fluid level and other real-world sensors
  • LED status indicators per input
  • Removable screw-down terminal blocks

    • COMMUNICATIONS

  • Integrated Lonworks communications topology allows the system to be configured as a star, bus or loop
  • Ethernet communication options

    • RACK MOUNT

  • up to 7 controllers can be mounted in an ENC-RM providing 224 Inputs in a small 16 x 16 footprint

    • DIMENSIONS

  • PCB Board: 4in w x 11in h x 1in d
  • With connectors: 4.5in w x 11in h x 1in d
  • ENC-RM: 16in w x 16in h x 6.75in d
