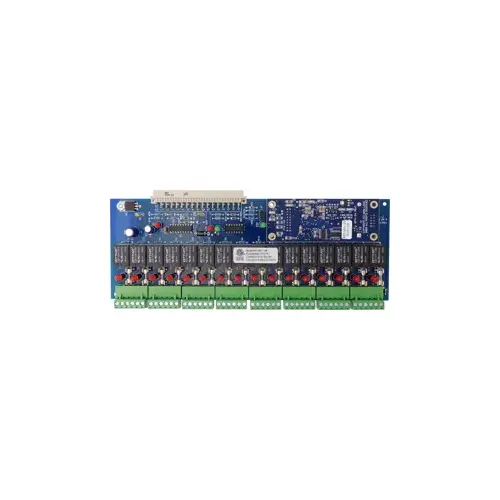

OSSI MC-MLC-16R I/O Control Panels

Item #: MC-MLC-16R by OSSI

See reviewsSee reviews

$1,857.70

/each
SAVE UP TO 185.77

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

161358

Product Overview

Overland Safety Systems Control Panels

Part No. MC-MLC-16R

This is part of OSSI’s Complete PSIM Solution. This Smart Programmable Logic Controller (SPLC) is built specifically for controlling system outputs. The panel supports peer to peer communication and ladder logic programming providing ultimate flexibility. The distributed processing and peer to peer communications provide a redundant robust solution that continues to function regardless of the condition of the rest of the system. The controller provides 16 Form C relay outputs that can be triggered by system multitude of events or from peer to peer commands from other controllers

PROGRAMMING

  • User-definable ladder logic programming allows system operation to be configured to the needs of the application
  • All points are programmable and can be triggered from system events or Inputs from other controllers

    • OPERATIONS

  • Standalone processor
  • Program stored in flash memory
  • Real-time clock for time/date based operation
  • Peer-to-peer capability

    • POWER

  • 12-15 VDC
  • 70 mA base current
  • 15 mA per activated input
  • 550 mA maximum draw
  • Memory backup - 6 months

    • DATA

  • 78 KBPS Free Topology twisted pair transceiver provides connection to host and peer-to-peer communications between panels

    • TERMINATION

  • Communications through rack mount
  • Removable Screw Terminals for up to 14 AWG

    • INPUTS

  • 32 Programmable Inputs
  • Supervised and non-supervised
  • Binary capability for event alarms
  • Analog capability for temperature, fluid level and other real-world sensors
  • LED status indicators per input
  • Removable screw-down terminal blocks

    • OUTPUTS

  • 16 Single-Pole Double-Throw Form C Contacts
  • Contacts rated at 6 Amps and 250 Volts
  • Individually fused at 5 Amps
  • LED status indication

    • COMMUNICATIONS

  • Integrated Lonworks communications topology allows the system to be configured as a star, bus or loop
  • Ethernet communication options

    • RACK MOUNT

  • up to 7 controllers can be mounted in an ENC-RM providing 224 Inputs in a small 16 x 16 footprint

    • DIMENSIONS

  • PCB Board: 4in w x 11in h x 1in d
  • With connectors: 4.5in w x 11in h x 1in d
  • ENC-RM: 16in w x 16in h x 6.75in d
