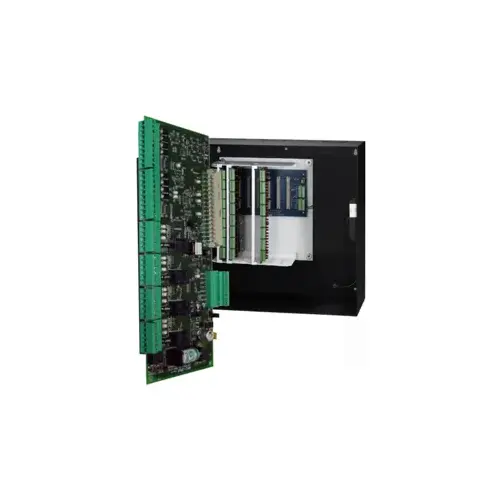

OSSI MC-MLC-4R I/O Control Panel

Item #: MC-MLC-4R by OSSI

See reviewsSee reviews

$2,293.30

/each
SAVE UP TO 229.33

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

168710

Product Overview

Overland Safety Systems Access Control Panels

Part No. MC-MLC-4R

This is part of OSSI’s Complete PSIM Solution. The MAC-4R is an intelligent distributed processing access control panel. The panel supports ladder logic programming providing ultimate flexibility. The I/O style board provides traditional flat mounting in an enclosure or rack termination which allows for 28 doors of access control in a small 18in x 18in enclosure footprint. The integrated Lonworks communications protocol and flexible communications topology supports up to 126 controllers on one communications line.

PROGRAMMING

  • User-definable ladder logic programming allows system operation to be configured to the needs of the application
  • User-defined operator interface allows the operator screens to be configured specifically for the application

    • OPERATIONS

  • Supports 20,000 cards per panel
  • 4,000 event buffer FIFO
  • Threat-level based operation
  • Real-time clock for time/date based operation
  • Wiegand and magnetic stripe outputs standard

    • POWER

  • 18-28 VDC at 640mA max draw
  • 12 VDC when powered by system battery
  • 12 VDC at 7.5 Ah system battery
  • 3.5 VDC at 350 mAh memory battery

    • DATA

  • 78 KBPS Free Topology twisted pair transceiver provides connection to host and peer-to-peer communications between panels

    • TERMINATION

  • Removable screw terminals for up to 12 AWG
  • Rack connector for connection to MC-ENC-RMX

    • INPUTS / OUTPUTS

  • Support for up to 4 Wiegand, Magnetic-stripe or Proximity readers
  • Support for Reader/PIN combinations for 8-bit keypads
  • Supplies 5 VDC or 12 VDC power for readers or network interface.
  • Eight supervised or un-supervised inputs
  • Inputs can be configured as binary (logic) or analog (values)
  • Two to Four-state supervision of inputs
  • Four 5 Amp 300 Volt rated relay outputs

    • COMMUNICATIONS

  • Integrated Lonworks

    • ENCLOSURE DIMENSIONS

  • PCB Board: 8-3/4in W x 6-3/4in H x 1in D
  • 4-Door Enclosure: 15in W x 17.5in H x 4.5in D
  • ENC-RMX: 18in W x 18in H x 7.75in D
