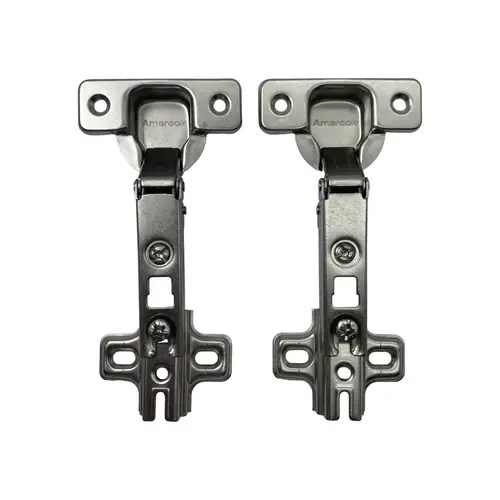

Amerock BP4611A14 Full Frameless Concealed Hinge 2-7/16" W X 2-9/16" L Nickel Steel Nickel

Item #: BP4611A14 by Amerock

UPC #: 026634040557

See reviewsSee reviews
In Stock

$18.49

/each
SAVE UP TO 1.85

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Overlay: 110 Degree
  • Full Overlay Hinge
  • Material: Metal
  • Finished in Nickel
  • This is a Pair of Hinges.
  • 2 Pack
  • Includes mounting hardware: (Size(s):#6 Flat Head Screw x 5/8in)
  • Uncompromised quality at an unbeatable price

Finish

Nickel

Product Projection Fraction (in)

1

Shelf Pack Weight (lbs)

3.833

Opening Angle

110

Individual Pack

Polybag

Adjustable Depth

Yes

Product Length Decimal (in)

2.5625

Cup Depth mm

11

Shelf Pack Height (in)

4.5

Demount-able

No

Product Width

2-7/16 Inch

Hole Pattern

45

Installation Type

Screw

Top/Bottom Widths

NO

Cup Diameter mm

35

Adjustable Side to Side

Yes

Product Projection (mm)

25.4

Overlay Fraction (in)

Full

Shelf Pack Length (in)

11.75

Collection

Functional Hardware

Max Cabinet Door Thickness

0.75

Product Class

Residential

Configuration

Hinges

3-Way Adjustable

Yes

Packaging Width (in)

6

Product Width Decimal (in)

2.4375

Cabinet Type

Panel

Hinge Mount

Full Overlay

Overlay

1 Inch

Wrap Type

Self-Closing, Concealed

Pieces Per Package

2

Style

N/A

Adjustable Height

Yes

Soft Close

No

Boring Distance

2, 2.5

Shelf Pack Width (in)

6

Hinge Type

Full overlay

Self Closing

Yes

Packaging Height (in)

0.45

Product Projection Decimal (in)

1

Product Type

Cabinet Hinge

Product Weight

0.375

Packaging Length (in)

11.75

Product Length

2-9/16 Inch

Base Material

Steel

Shelf Pack Qty

10

Arm Type

Straight Arm

Material

Steel

Length

11.75

Width

6.00

Type

Full Overlay

Pack Size

Pair

Series

Functional Hardware

Projection

1 in(25mm)

Screws Included

Yes

Returnable

Yes

Removable Pin

No

Defective Code

A

Number in Package

2 pk

Number of Holes

4

Indoor or Outdoor

Indoor

Packaging Type

Bagged

Hinge Opening

110 deg

Each Weight

0.320 LB

Velocity

A

Hazardous Material

No

Dimensions

2-9/16 in L x 2-7/16 in W

Nomenclature

BP4611A14 HINGE MORTISE

Height

0.45

Country Origin Code

CN

Finish Family

Nickel

Included Components

(4) #6 F.H. x 5/8" LGTH

Product Material

Steel

Hole Center to Center

1-3/4 Inch

Standards

KCMA; BHMS

Function Family

Hinge/Pivot

Product Projection

1 Inch

Features

Full Overlay

Color Code

14/G9

Function

Cabinet Hinge

Finish Description

Silver Tone

Manufacturer Parent

Amerock

Sub-Series

BP4611-A14

ECCN

EAR99

Size

2-9/16" Length

Product Length (in.)

2-9/16

Product Width (in.)

2-7/16

Includes Hardware

#6 X 5/8In Flat Head Screw

Product Overview
HINGE CONCEALED FRAME ANT NKL
Specifications:

Dimensions: 2-9/16 in L x 2-7/16 in W

Includes: (4) 6 Flat Head x 5/8 in Screws

Material: Steel

Every Amerock functional hardware Series item is tested for durability in conditions exceeding all KCMA certification requirements and BHMS standards for cycle life, strength and finish quality.
