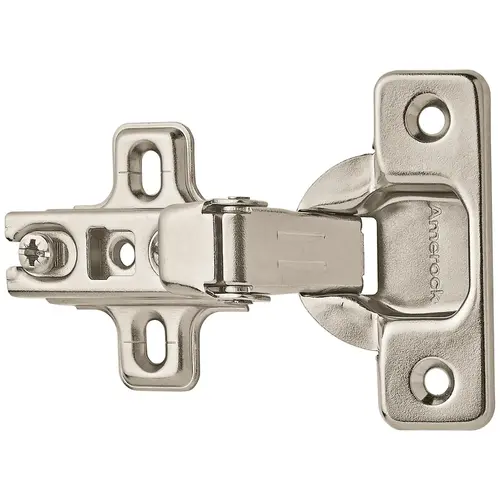

Amerock BP4613D14 Full Inset Frameless Concealed Cabinet Hinge Nickel Finish - Pair
Item #: BP4613D14 by Amerock
UPC #: 026634040588
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Overlay: 110 Degree
- Full Inset Hinge
- Material: Metal
- Finished in Nickel
- This is a Pair of Hinges.
- 2 Pack
- Includes mounting hardware: (Size(s):#6 Flat Head Screw x 5/8in)
- Uncompromised quality at an unbeatable price
Finish
Nickel
Product Projection Fraction (in)
1 1/2
Shelf Pack Weight (lbs)
4.15
Opening Angle
110
Individual Pack
Polybag
Adjustable Depth
Yes
Product Length Decimal (in)
2.5
Cup Depth mm
11
Shelf Pack Height (in)
4.7
Demount-able
No
Product Width
2-7/16 Inch
Hole Pattern
45
Installation Type
Screw
Top/Bottom Widths
NO
Cup Diameter mm
35
Adjustable Side to Side
Yes
Product Projection (mm)
38.1
Overlay Fraction (in)
Full
Shelf Pack Length (in)
12
Collection
Functional Hardware
Max Cabinet Door Thickness
0.75
Product Class
Residential
Configuration
Hinges
3-Way Adjustable
Yes
Packaging Width (in)
6
Product Width Decimal (in)
2.4375
Cabinet Type
Panel
Hinge Mount
Full Inset
Wrap Type
Self-Closing, Concealed
Pieces Per Package
2
Style
N/A
Adjustable Height
Yes
Soft Close
No
Boring Distance
2, 2.5
Shelf Pack Width (in)
6
Inset
Full
Hinge Type
Full Inset
Self Closing
Yes
Packaging Height (in)
0.47
Product Projection Decimal (in)
1.5
Product Type
Cabinet Hinge
Product Weight
0.144
Packaging Length (in)
12
Product Length
2-1/2 Inch
Base Material
Steel
Shelf Pack Qty
10
Arm Type
Full Cranked
Material
Steel
Length
2-1/2
Width
2-7/16
Type
Full Inset
Pack Size
Pair
Series
Functional Hardware
Projection
1-1/2 in(38mm)
Function
Cabinet Hinge
Finish Description
Silver Tone
Dimensions
2-1/2 in L x 2-7/16 in W
Number of Holes
4
Nomenclature
BP4613D14 HINGE FULL INSET
Finish Family
Nickel
Included Components
(4) #6 F.H. x 5/8" LGTH
Product Material
Steel
Hole Center to Center
1-3/4 Inch
Standards
KCMA; BHMS
Function Family
Hinge/Pivot
Product Projection
1-1/2 Inch
Features
Full Inset
Color Code
14/G9
Manufacturer Parent
Amerock
Sub-Series
BP4613-D14
Size
2-1/2" Length
Product Length (in.)
2-1/2
Product Width (in.)
2-7/16
Includes Hardware
#6 X 5/8In Flat Head Screw
Screw Size
#6 FH x 5/8 In.
Closing Type
Self-Closing
Screws Included
Yes
Swing Angle
110 deg
Product Overview
HINGE CONCEALED FRAME NICKEL
Specifications:
Specifications:
Includes: (4) 6 Flat Head x 5/8 in Screws
Every Amerock functional hardware Series item is tested for durability in conditions exceeding all KCMA certification requirements and BHMS standards for cycle life, strength and finish quality.
