Kitchen Cabinet Hinge Matrix Concealed Nickel Retail Pack 3/8" Overlay

Roll over image to zoom in

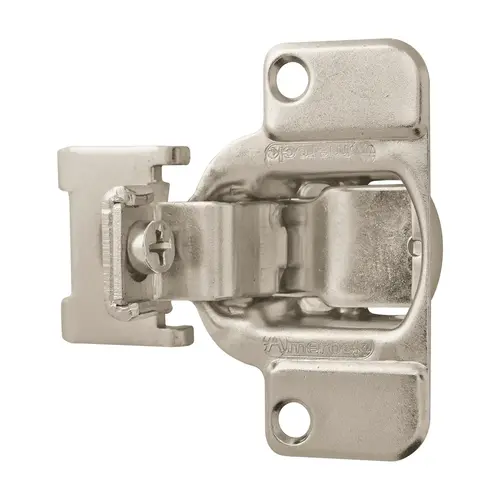

Amerock BP2811I1214 Kitchen Cabinet Hinge Matrix Concealed Nickel Retail Pack 3/8" Overlay

Item #: BP2811I1214 by Amerock

UPC #: 026634144446

Item Discontinued!
See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • 3/8 in (10 mm) Overlay Hinge
  • 2-way independent adjustability
  • Finished in Nickel
  • Compact design with low protrusion into cabinet opening
  • Stay open feature
  • 2 Pack
  • Includes mounting hardware: (Size(s):#10 Truss Head Screw x 3/4in; #5 Flat Head Screw x 1/2in)
  • Designed and tested to exceed KCMA and BHMA standards
  • Overlay: 3/8"
  • Uncompromised quality at an unbeatable price
  • Hole Pattern: 1-8/9"
  • Cup Depth: 1/2"
  • Opening Angle: 105 Degree
  • This is a Pair of Hinges.

Configuration

Hinges

Finish

Nickel

Top/Bottom Widths

NO

Style

N/A

Adjustable Height

Yes

Installation Type

Screw

Product Class

Residential

Product Weight

0.245

Hinge Type

Concealed Euro

Hole Pattern

48

Collection

Functional Hardware

3-Way Adjustable

No

Adjustable Depth

No

Adjustable Side to Side

No

Boring Distance

2, 2.5

Cabinet Type

Face Frame

Cup Depth mm

13

Cup Diameter mm

35

Demount-able

No

Hinge Mount

Partial Overlay

Max Cabinet Door Thickness

0.75

Opening Angle

105

Overlay

10

Self Closing

Yes

Soft Close

No

Product Length

60.325

Product Width

58.7375

Hole Pattern Fraction (in)

1.875

Individual Pack

Polybag

Overlay Decimal (in)

0.375

Overlay Fraction (in)

3/8

Packaging Height (in)

0.45

Packaging Length (in)

12

Packaging Width (in)

5.75

Pieces Per Package

2

Product Length Decimal (in)

2.375

Product Projection (mm)

0

Product Projection Decimal (in)

0

Product Projection Fraction (in)

0

Product Width Decimal (in)

2.3125

Shelf Pack Height (in)

4.5

Shelf Pack Length (in)

12

Shelf Pack Qty

10

Shelf Pack Weight (lbs)

2.75

Shelf Pack Width (in)

5.75

Wrap Type

Self-Closing, Concealed

Base Material

Steel

Design

Functional Hardware

Product Type

Hinge

Material

Steel

Length

2-3/8

Width

2-5/16

Type

3/8 Inch Overlay

Pack Size

1

Packaging Detail

Retail Pack

Every Amerock functional hardware series item is tested for durability in conditions exceeding all KCMA certification requirements and BHMS standards for cycle life, strength and finish quality.

The Amerock BP2811I1214 3/8 in (10 mm) Overlay Hinge is finished in Nickel.
