Features
- Constructed from zinc die-cast material with a satin chrome finish for use in commercial door hardware and exit device systems.
- Features a 2-3/4" lever projection and requires a 2-1/8" door cross bore for installation on standard commercial doors.
- Designed for doors with a thickness of 1-3/8" to 1-3/4" and is ADA compliant for accessibility in commercial environments.
- Functions as a passage lock with the lever always free, suitable for standard duty commercial applications requiring constant access.
- Compatible with Pamex E5000, E7000, and E8000 series exit devices for versatile hardware integration in various door setups.
- Rated as ANSI/BHMA Grade 2, meeting standard performance requirements for commercial exit device trim applications.
- Includes a 10-year mechanical and 5-year finish warranty, excluding cylinder components for simplified installation context.
Grade
ANSI/BHMA Grade 2
Application
Standard Duty Commercial Application
Warranty
10 Year Mechanical, 5 Year Finish
Color Code
626/US26D
Function
Passage
Finish Description
Satin Chrome
ADA Compliant
YES
Finish Family
Satin Chrome
Lever Projection
2-3/4 Inches
Door Cross Bore
2-1/8 Inches
Product Material
Zinc
Function Description
Lever trim always free
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Exit Device Trims
Product Projection
2-3/4 Inches
Features
Compatible with Pamex E5000, E7000, & E8000 exit devices
Product Type
Exit Device Trim
Series
E8000 Series
Manufacturer Parent
Pamex
Lever Material
Zinc die-cast lever
Sub-Series
Pamex-E8000-LPA
Finish
Satin Chrome
Includes Cylinder(s)
No
Hazardous Material
No
Finish code
AL
Lever Knob Design
Return Lever
No of inners
1
Product Overview

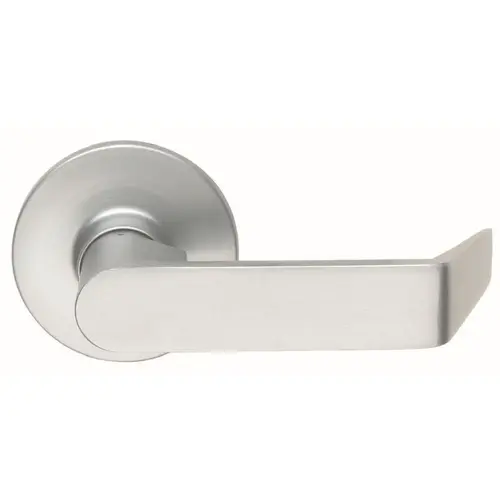

The Passage Lever Exit Device Trim is designed for use with exit devices in standard duty commercial applications. Constructed from zinc die-cast, this trim features a return lever design and is compatible with Pamex E5000, E7000, and E8000 exit devices. It functions as a passage lock, meaning the lever is always free for entry and exit. The trim is ADA compliant and fits doors with a thickness ranging from 1-3/8" to 1-3/4". It requires a door cross bore of 2-1/8" and has a lever projection of 2-3/4". This unit does not include a cylinder. The finish is satin chrome, providing a neutral aesthetic for commercial door hardware. It is rated as ANSI/BHMA Grade 2 and includes a 10-year mechanical and 5-year finish warranty. This exit device trim is intended for use in environments where a passage function is required, allowing for constant access without the need for a key or locking mechanism. The zinc die-cast construction provides a solid feel for the lever, while the return lever design ensures the handle is easy to operate. The trim is designed to be installed on standard commercial doors, and its compatibility with multiple Pamex series makes it a versatile choice for various door hardware configurations.
