Hager 130958 5100 Parallel 1-6 Adjustable Extra Heavy Duty Hold Open Stop Door Closer Aluminum Finish

Item #: 130958 by Hager

UPC #: 798550309581

See reviewsSee reviews
See reviews summary
In Stock

$262.83

/each
SAVE UP TO 26.28
Buying in bulk

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Ideal For Schools, Hospitals, And Other High-Use Environments
  • Adjustable Size
  • One Piece Seamless Steel Spring Tube
  • Cast Iron
  • Lifetime Warranty

Finish

Aluminum

Series

Hager 5100 Series

Material

Forged steel arm

Warranty

Lifetime Warranty

Door Thickness

  • 1-3/4" (44 mm) - standard
  • 1-3/8" - 2-1/4" (36 mm - 57 mm) thick door - optional

Certifications

BHMA Certified ANSI A156.4, adjustable sizes 1-6ADA compliant ANSI A117.1 Accessibility CodeUL/cUL Listed for up to 3 hoursUL10C Positive Pressure RatedUL10B Neutral Pressure Rated5100 Door Closer EPD

Maximum Door Thickness

  • 1-3/4" (44 mm) - standard
  • 1-3/8" - 2-1/4" (36 mm - 57 mm) thick door - optional

Maximum Door Weight

330 lbs.

Valves

  • Adjustable backcheck, sweep, and latching valves- standard
  • Delayed action valve - optional
  • All valves are staked

Fasteners

  • Self-reaming, self-tapping wood and machine screws
  • Sex nuts and bolts

Springs

  • One piece seamless steel spring tube
  • Double heat treated steel, tempered springs
  • Precision machined heat treated steel piston

FASTENERS - DOOR CONTROLS

STANDARD

MISC. - DOOR CONTROLS

STANDARD

FINISHES - DOOR CONTROLS

ALM - PAINTED SATIN ALUMINUM

COVERS - DOOR CONTROLS

STANDARD

Cover

  • Full plastic cover - standard
  • Plated metal cover - optional

Size

  • One piece seamless steel spring tube
  • Double heat-treated, steel-tempered springs
  • Precision-machined, heat-treated steel piston

Handing

Non-Handed

Product Overview

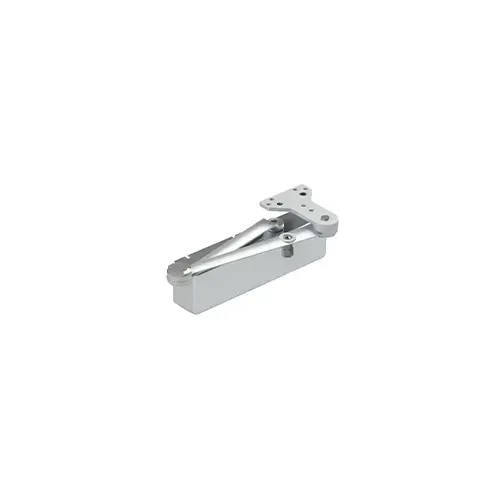

5100 Closer x 5961 Extra Heavy Duty Hold Open Stop Arm (HDHOS)
Applications:
  • Grade 1 Heavy Duty Surface Door Closer adjustable sizes 1-6
  • Ideal for schools, hospitals, and other high-use environments

Certifications:
  • BHMA Certified ANSI A156.4, adjustable sizes 1-6
  • ADA compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for up to 3 hours
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
  • 5100 Door Closer EPD

Finishes:
ALM, BLK, BRZ, DBZ, GOL
Warranty:
Lifetime warranty
