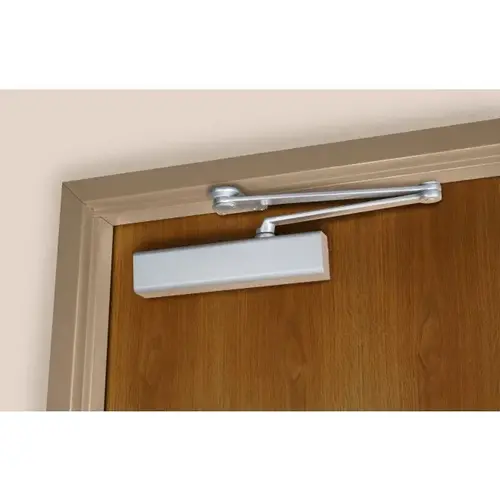

Norton PR8501 689 Parallel Rigid Arm Adjustable Surface Mount Door Closer with Full Cover and Sex Nuts Aluminum Finish
Item #: PR8501 689 by Norton
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
- Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
- Closers shall be non-handed to permit installation on doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents.
- Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
- Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
- Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
- Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
- [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
- Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
Finish
Aluminum
Function
Regular
Series
8500 Series
Color
Aluminum Painted
Color Code
689/US28
Fire Rated
3 Hours {A}
Origin
USA
BAA Qualified
Yes
Package Height
3.5
Package Length
15.25
Package Volume
333.59375
Package Width
6.25
Grade
ANSI/BHMA Grade 1
Finish Description
Aluminum Painted
Closer Cover
Full Plastic Cover
Product Type
Door Closer/Holder/Stop
Application
Offices; Banks; Retail Malls; Hotels; Health Care; Clinics
Hand
Non-Handed
Handing
Non-Handed
Warranty
30 Year Limited Warranty
Spring Size
Adjustable 1-6
Door Thickness
1-3/4 inch
Door Size
28" to 48"
Maximum Door Opening
180°
Standards
Grade 1 - ANSI/BHMA A156.4; UL listed; UL10c Compliant for Positive Pressure
Closer Arm Extension
8 Inch
Closer Arm Type
Parallel Rigid Arm
Closer Clearance
5-7/8 Inch
Closer Fluid Temperature Range
Extremely High to as Low as -40°F
Closer Fluid
Closer Fluid
Closer Piston Diameter
1-1/4 Inch
Closer Pinion Diameter
5/8 Inch
Function Family
Non Hold Open Door Closer
Mounting Hole Size
3/4" x 12"
Fastener Type
Self Drilling Screws
Features
Standard; Separate And Independent; Latch; Sweep And Backcheck Intensity Valves; Staked Valves
Product Height
2-7/8 Inch
Product Length
13 Inch
Product Width
2-1/8 Inch
ADA Compliant
YES
Finish Family
Aluminum
Product Material
Cast Aluminum
Mounting Type
Push or Pull Side
Manufacturer Parent
Assa Abloy
Closer Hold-Open
false
Sub-Series
PR8501-689
Product Overview
Parallel Rigid Arm Door Closer, Adjustable Size 1-6, Aluminum Painted
The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge. The 8000 Series Door Closers exceed 10 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed. A slim-line plastic cover is standard with the 8301 closer and a full plastic cover is standard with the 8501 closer.
Architectural Tri-Style® door closer.
The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.
