Collet Chuck: 1.98 to 19.99 mm Capacity, ER Collet, Taper Shank

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

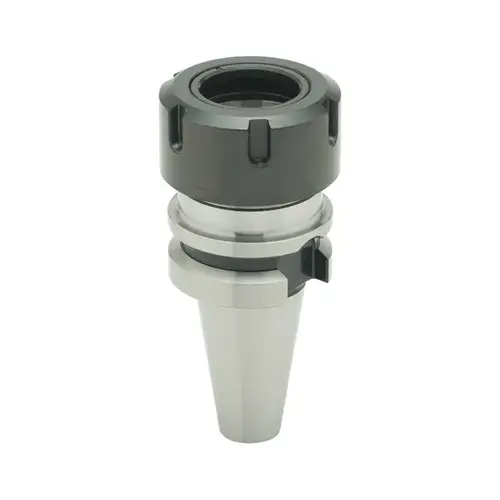

Parlec B30-32ERP248 Collet Chuck: 1.98 to 19.99 mm Capacity, ER Collet, Taper Shank

Item #: B30-32ERP248 by Parlec

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
HURRY! Low in stock

$354.96

/each
SAVE UP TO 35.50
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Diameter

1.97"

Maximum RPM

25000

D

3.88"

B

1.97"

Product Type

Taper Collet Chuck

Torque

1200" lbs

Shank Type

Taper

Taper Size

BT30

Collet Series

ER32

Collet System

ER

Maximum Collet Capacity (Decimal Inch)

0.7870

Maximum Collet Capacity (mm)

19.99

Minimum Collet Capacity (Decimal Inch)

0.0780

Minimum Collet Capacity (mm)

1.98

Overall Length (Decimal Inch)

4.3860

Product Service Code

5136

Projection (Decimal Inch)

2.4800

Through Coolant

Yes

TIR (Decimal Inch)

0.000200

Vendor Drop Ship

N

Coolant Type

Through-Spindle

Nose Diameter (Decimal Inch - 4 Decimals)

1.9700

Product Overview
The Parlec collet chuck is easy to use. This item has a 1.97 in diameter. Most of the products in this category have a maximum RPM. The maximum RPM is designated for both safety and as the upper limit for performance. In this case the maximum RPM is 25000. The working range for this collet chuck is.0540 in-1.0000 in. Rated for up to 100 ft lbs torque. Packaged 1 per pack.
Specifications:

Range: .0540"-1.0000"

C: 2.48"

Series: ER 32

Tool Holder Type: Toolholding Collet
