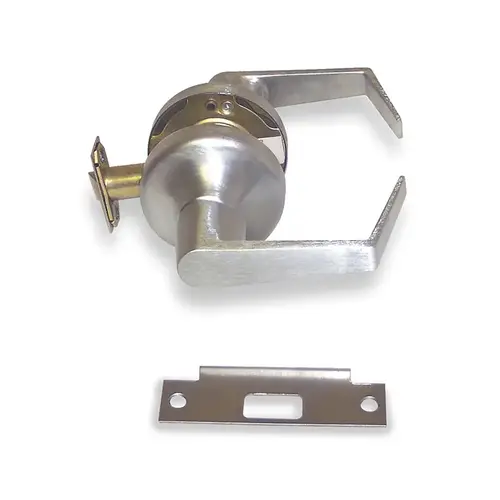

Yale Commercial AU4701LN 626 Passage Augusta Lever Grade 1 Cylindrical Lock with 693 Latch and 497-114 Strike US26D (626) Satin Chrome Finish
Item #: AU4701LN 626 by Yale
UPC #: 049306170000
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- ANSI / BHMA A156.2 Grade 1
- Door Thickness: 1-3/4" (44mm) to 2" (51mm); 1-3/8" (35mm) or 2-1/4" (57mm), please specify on order
- Strike: ANSI 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center.
- Backset: 2-3/4" (70mm)
- UL Fire Rated Up to 3 Hours
- Handing: Non-handed
- Installation: ANSI/BHMA A156.115(-W)
- ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000 Grade 1
- Adjustable from 1-3/8" to 1-3/4" Door Thickness
- 2-1/4" x 1-1/8" Beveled Front Standard
- Warranty: 5 year
- Non Handed
Finish
Satin Chrome
Function
01LN-Passage/Closet
Series
4700LN Series
Design
Augusta
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Backset
2-3/4 Inch
Lever/Knob Design
AU - Augusta
Strike Height
4-7/8"
Base Material
Brass or Bronze
Rose/Escutcheon Design
3-1/2 In. Diameter
Strike Type
ANSI Strike
Color Code
626/US26D
Bolt Protection
1/2"
Screws
Combination
Package Qty
1
Lock Face Size
2-1/4" x 1-1/8"
Latch Backset Dim
2-3/4"
Strike Width
1-1/4"
Special Marks
Fire rated 3 Hours {A}
Fire Rated
3 Hours {A}
Grade
ANSI/BHMA Grade 1
Hand
Not Handed
ANSI Function
F75
Latch Type
Spring Latch (Unguarded)
Latch Number
693
Package Volume
0
Strike Number
497
Thickness
1-3/4" - 2"
Finish Description
Satin Chrome
Lever Style
AU-Augusta
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Projection
3.5000
Lever Length
5.0000
Door Thickness
1 3/4" - 2"
ADA Approved
False
Strike Size
4-7/8" x 1-1/4"
Manufacturer Parent
Assa Abloy
Knob/Lever Size
5 Inch
Latch Throw
1/2 Inch
Function Description
Latch retracted by knobs/levers at all times
Sub-Series
AU-4701LN-626
Lever Style Family
Straight Return Lever
ADA Compliant
YES
Latch Bolt Material
Stainless Steel
Lever Length-Inches
5 Inch
Handle Type
Lever
Application
Commercial Applications
Trim Material
Cast Zinc (Lever); Brass (Rose)
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.2; UL/cUL Listed
Rose Diameter
3-1/2 Inch
Product Projection
3-1/2 Inch
Features
Freewheeling Trim; Available With Microshield® Antimicrobial Coating
Warranty
5 Year Mechanical
Strike Lip
1-1/4 Inch
Finish Family
Satin Chrome
Dimension
5-1/4" Lever Length; 3-1/2" Projection; 3-1/2" Rose Diameter
Material
Cast Zinc
Manufacturer Warranty
Limited 5 Year Warranty
UL Listing Type
UL-cUL Fire-Rated Up to 3 Hours
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/4" x 4-7/8"
Cross Bore Size
2-1/8" Bore with 5/8" Holes for Thru Bolts
Finish code
626
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Lever Knob Design
Augusta Lever
No of inners
1
Product Overview
4700LN SeriesCylindrical Lever Locks
Yale® 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN Series is certified to ANSI/BHMA Grade 1 standards and is UL fire-listed for all functions ensuring reliability and peace of mind.
Features:- Available in 19 functions, 3 lever designs, and 9 finishes
- Knurled lever designs available
- Freewheeling trim
- Available with Microshield® antimicrobial coating
- 1-3/4" (44mm) to 2" (51mm); 1-3/8" (35mm) or 2-1/4" (57mm)
- ANSI 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center
- 2-3/4" (70mm)
- Non-handed
- ANSI/BHMA A156.115(-W)
- Certified ANSI/BHMA A156.2, Series 4000 Grade 1
- 5 year
- UL – cUL listed for use on fire doors having a rating up to and including 3 hours
- Windstorm certified refer to local codes
- Meets accessibility guidelines for the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ANSI 117.1
- Note: Any retrofit or other field modification to a fire-rated opening can potentially impact the fire-rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
- Bright Brass, Clear Coated
- Satin Bronze, Clear Coated
- Satin Bronze, Clear Coated
- Dark Oxidized Satin Bronze - equivalent
- Bright Chrome Plated
- Satin Chrome Plated
- Black Suede Powder Coat
- White Suede Powder Coat
- * Cylinders provided in these finishes only.
- ** Available with MicroShield®
- Note: Dark Oxidized Satin Bronze, Oil Rubbed (613) and Black Oxidized Bronze, Oil Rubbed (722) finishes are available by Special Product Application Request only. Contact customer service for more information.
- MicroShield®
As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria. - MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
