30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Offers Highest Level of Security
- Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset: 2-3/4” only.
- Forged Escutcheons for Added Strength
- UL Listed
- Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs: Hardened steel.
- Ability to Easily Rehand the Lock in the Field
- Limited 1 Year Warranty
- Handing: Right hand is standard; left hand optional. Reversible in the field.
- Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions: Available in 12 or 24 VDC.
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
- UL: 3 hour A label.
Finish
Satin Chrome
Function
Passage
Series
MA Series
Design
Avalon Gala
Strike
1-1/4" x 4-7/8" Square Corner ANSI Strike
Backset
2-3/4" Backset
Color Code
626/US26D
Material
Cold Formed Steel
Manufacturer Warranty
Limited 10 Year Mechanical and 1 Year Electro Mechanical Warranty
Rose/Escutcheon Design
Gala Rose
Hazardous Material
No
Strike Dimension
1-1/4" x 4-7/8"
Finish code
626
Lever Knob Design
Avalon Lever
No of inners
1
Grade
Grade 1
Keyed
No
Electronic
No
UL Listing Type
UL listed 3-hour fire door, A label
Door Handing
Field Reversible
Lever Style
Avalon Lever
Trim Style
Gala
Lock Type
Mortise
Duty Level
Heavy Duty
Product Overview

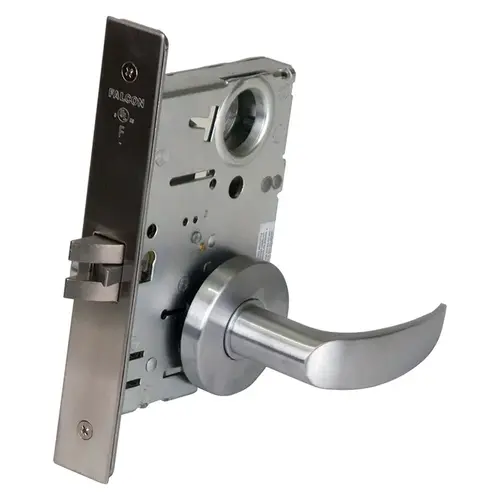

Passage Mortise Lock, Avalon Lever, Gala Rose, Satin Chrome
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.
Provides security and is built to stand up to constant use without fail.
