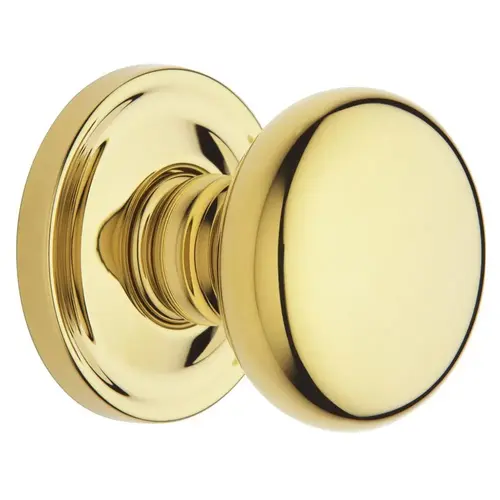

Baldwin 5015031PASS Estate Classic Knob Set w/5048 Rose Non Lacquered Brass
Item #: 5015031PASS by Baldwin
UPC #: 884011687760
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 5015 Estate Knob Passage Set
- Solid Forged Brass
- Preconfigured With 5048 Estate Rose
- Upon Request, Lock Can Be Certified By Underwriters Laboratories (Ul) For Use On Fire Doors Up To Three-Hour Rating
- Limited Lifetime Mechanical Warranty and No Finish Warranty
Material
Brass
Product Class
Residential
Shape
Round
UL Listed
Yes
Rose Diameter
2.625
Theme
Transitional
Style
Transitional
Latch Faceplate
Square Corner
Handle Material
Metal
Handing
Left, Reversible, Right
Function
PASS-Passage
Configuration
Knobset
Projection
2.1770
Backset
2-3/8 Inch
Door Thickness
1-3/8" to 1-3/4"
28 Degree Latch
Yes
Concealed Screws
Yes
Cross Bore
2-1/8"
Door Knob Shape
Mushroom
Handle Style
Knob
Knob Diameter
2.125
Edge Bore
1"
Panic Proof
Yes
Rosette Shape
Round
Solid Construction
Solid Brass
Collection
Estate, Estate Pre-Configured
Series
5000 Series
Finish
Non Lacquered Brass
Finish Description
Non-Lacquered Brass
Grade
ANSI/BHMA Grade 2
Strike
T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
5048-Round Rose
Knob style
5015-Classic
Design
5015 Knob
Product Height
2-5/8 Inch
Included Components
Knobs; Rosettes; 2-3/8" Backset Latch; 2-1/8" Pre Bore Adaptor; Full Lip Strike
Product Material
Solid Forged Brass
Warranty
Lifetime Limited Mechanical/Finish
Color Code
031
Latch Type
28-Degree Solid Brass
Strike Type
Square
Finish Family
Brass
Standards
ANSI/BHMA; UL Listed
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Passage/Hall/Closet
Product Projection
2-5/16 Inch
Features
Rose Designed to Conceal a 2.125" Bore; Concealed Mounting System
Door Cross Bore
2.125 Inch
Manufacturer Parent
Spectrum
Box Dimensions (L x W x H)
5.9 x 5.3 x 4.5
Sub-Series
RL_Knob_Locksets_Baldwin_7
Dimension
2-1/8" Diameter, 2-1/4" Projection
Manufacturer Warranty
Limited Lifetime Mechanical Warranty and No Finish Warranty
Rose/Escutcheon Design
5048 Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
031
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
5015 Knob
No of inners
1
Product Overview
Knob Lock With 5048 Rose, 2-3/8" Backset, 031 Non-Lacquered Brass, Passage
