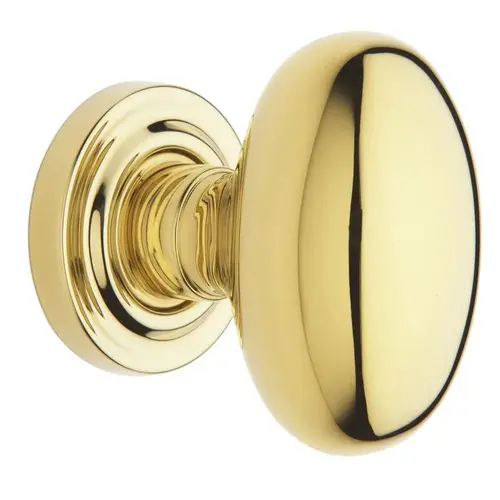

Baldwin 5025031PASS Estate Egg Knob Set w/5048 Rose Non Lacquered Brass
Item #: 5025031PASS by Baldwin
UPC #: 884011687883
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 5025 Estate Knob Passage Set
- Solid Forged Brass
- Preconfigured With 5048 Rose
- Upon Request, Lock Can Be Certified By Underwriters Laboratories (Ul) For Use On Fire Doors Up To Three-Hour Rating
- Limited Lifetime Mechanical Warranty and No Finish Warranty
Material
Brass
Product Class
Residential
Function
PASS-Passage
Latch Faceplate
Square Corner
Style
Transitional
Theme
Transitional
UL Listed
Yes
Shape
Egg
Configuration
Knobset
Backset
2-3/8 Inch
Handing
Left, Reversible, Right
Door Thickness
1-3/8" to 1-3/4"
28 Degree Latch
Yes
Concealed Screws
Yes
Cross Bore
2-1/8"
Door Knob Shape
Egg
Edge Bore
1"
Panic Proof
Yes
Rosette Shape
Round
Solid Construction
Solid Brass
Trim Width
2.625
Trim Height
2.625
Handle Width
2.5
Collection
Estate, Estate Pre-Configured
Series
5000 Series
Handle Height
1.75
Handle Projection
2.562
Finish
Non Lacquered Brass
Finish Description
Non-Lacquered Brass
Grade
ANSI/BHMA Grade 2
Strike
T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
5048-Round Rose
Knob style
5025-Egg
Projection
2.5620
Product Height
2-5/8 Inch
Included Components
Knobs; Rosettes; 2-3/8" Backset Latch; 2-1/8" Pre Bore Adaptor; Full Lip Strike
Product Material
Solid Forged Brass
Warranty
Lifetime Limited Mechanical/Finish
Color Code
031
Latch Type
28-Degree Solid Brass
Strike Type
Square
Finish Family
Brass
Standards
ANSI/BHMA; UL Listed
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Passage/Hall/Closet
Product Projection
2-5/8 Inch
Features
Rose Designed to Conceal a 2.125" Bore; Concealed Mounting System
Door Cross Bore
2.125 Inch
Manufacturer Parent
Spectrum
Box Dimensions (L x W x H)
5.9 x 5.3 x 4.5
Sub-Series
RL_Knob_Locksets_Baldwin_15
Dimension
1-1/2" x 2-1/2" Knob, 2-1/4" Projection
Manufacturer Warranty
Limited Lifetime Mechanical Warranty and No Finish Warranty
Rose/Escutcheon Design
5048 Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
031
Design
5025 Knob
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
5025 Knob
No of inners
1
Product Overview
Knob Lock With 5048 Rose, 2-3/8" Backset, 031 Non-Lacquered Brass, Passage
