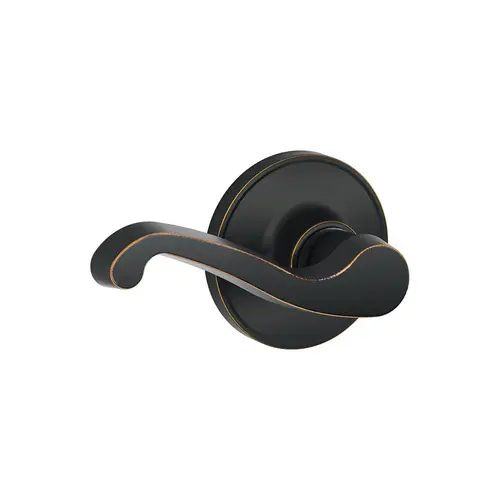

Schlage J Dexter Series J10LAS716 Passage Lock LaSalle Aged Bronze Finish with Adjustable Latch and Radius Strike
Item #: J10LAS716 by Dexter by Schlage
Brand: Schlage J Dexter Series
UPC #: 043156895342
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Hall/ Closet (Passage) Function - Both Knobs/Levers Always Unlocked
- Easy installation
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
Finish
Aged Bronze
Function
Passage
Series
J Series LaSalle
Design
LaSalle
Handing
Reversible
Strike
Radius Full Lip Strike
Backset
2-3/8" or 2-3/4"
Grade
ANSI/BHMA Grade 3
Warranty
Limited lifetime
Color Code
643E/US11/716
Door Thickness
1-3/8 to 1-3/4"
Finish Description
Aged Bronze
ANSI Function
F75
Latch Type
Spring Latch
Product Height
2-5/8 Inches
Strike Type
Round Corner Full Lip
ADA Compliant
YES
Finish Family
Antique Bronze
Included Components
Passage knobs, roses, latch, strike, mounting hardware
Lever Style
LAS-LaSalle
Strike Size
1-5/8 x 2-3/4"
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Product Material
Zinc
Standards
ANSI/BHMA A156.2-2011 Commercial Grade 3
Faceplate Dimension
1/4"
Function Description
Latch retracted by knobs/levers at all times
Function Family
Passage/Hall/Closet
Product Projection
2-7/8 Inch
Features
Lever Design Pairs Well With Traditional Styles Like High-Backed Formal Chairs; Always Unlocked For Ease Of Entry; Easy Installation With Screwdriver; Self-Aligning Screw Holes Make Installation Easy And Hassle-Free
Product Type
Cylindrical Lock
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.07x5.71x6.69
Lever Style Family
Wave Lever
Sub-Series
RL_Lever_Locksets_schlage_residential_141
Lock Type
Mechanical
Projection Size
1/2"
Edge Bore Diameter
1"
Bolt Throw Size
1/2"
Nomenclature
J10LAS716 LVR DR PASS AGED BRZ
Throw Length
1/2"
Latch Housing Diameter
7/8"
Cross Bore Diameter
2-1/8"
Security Grade
Grade 3
Backset Size
2-3/8 x 2-3/4"
Commercial/Residential
Residential
Faceplate Size
1 x 2-1/4"
Handle Type
Lever
Dimensions
2.44 in L x 5.32 in W x 2.63 in H
Material
Metal
Dimension
4-3/8" Lever Length and 2" Projection with 2-5/8" Diameter Rose
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
716
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
LaSalle Lever
No of inners
1
Product Overview
LEVER DOOR PASS AG BRZ LASALLE
Specifications:
Specifications:
Application: For residential single and multi family doors
LaSalle lever hall and closet lock in aged bronze.
