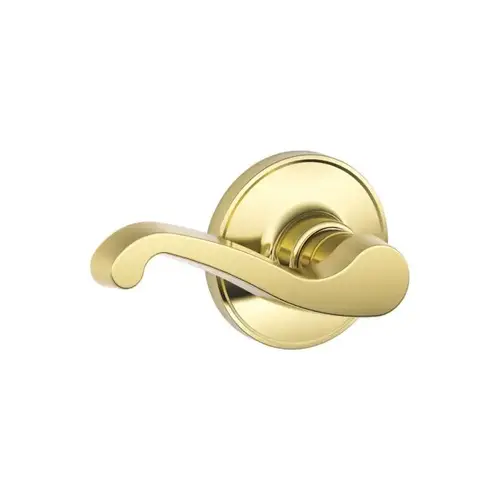

Schlage Residential J10 LAS 605 Passage Lock LaSalle Lever with 16254 Latch and 10101 Strike Bright Brass Finish
Item #: J10 LAS 605 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156992003
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Hall/ Closet (Passage) Function - Both Knobs/Levers Always Unlocked
- ADA Compliant: Yes
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- UL Listed: Locks for up to three-hour fire doors available
Finish
Bright Brass
Function
10-Hall/Closet
Series
J Series
Design
LaSalle
Handing
Reversible
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color Code
605/US3
Grade
ANSI/BHMA Grade 3
Finish Description
Bright Polished Brass
Lever Style
LAS-LaSalle
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Projection
2.8800
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Height
2-5/8 Inches
Product Length
4.0000
Included Components
Passage knobs, roses, latch, strike, mounting hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
6.6900
Box Width
5.7100
Box Height
3.0700
Warranty
Lifetime Mechanical Warranty and 5-Year Finish Warranty
Strike Type
Full Lip
ADA Compliant
YES
Finish Family
Polished Brass
ANSI Function
F75
Latch Type
Spring
Strike Size
1-5/8 x 2-1/4 Inch
Standards
ANSI/BHMA A156.2-2011 Commercial Grade 3; ADA Compliant
Faceplate Dimension
1/4"
Function Description
Latch retracted by knobs/levers at all times
Function Family
Passage/Hall/Closet
Product Projection
2-7/8 Inch
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.07x5.71x6.69
Lever Style Family
Wave Lever
Sub-Series
RL_Lever_Locksets_schlage_residential_141
Features
Lever Design Pairs Well With Traditional Styles Like High-Backed Formal Chairs; Always Unlocked For Ease Of Entry; Easy Installation With Screwdriver; Self-Aligning Screw Holes Make Installation Easy And Hassle-Free
Dimension
4-3/8" Lever Length and 2" Projection with 2-5/8" Diameter Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
605
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
LaSalle Lever
No of inners
1
Product Overview
J SeriesLevers
From classic looks that never go out of style to bold contemporary designs, Schlage's levers and door handles fit and accentuate virtually any décor. Available in a variety of functions, you can choose the perfect look for every room in your house - it's the easiest way to give your entire home a style upgrade.
Available Functions: J10/F75 - Hall & Closet*:- Both levers always unlocked
- Turn-button locking. Can be opened from outside by turning outside turn mechanism
- From interior, turning inside turn-button releases inside lever
- Push-button locking. Can be opened from outside with small circular tool
- Turning inside knob/lever releases button
- ADA Compliant
- Non-turning trim for one side of door
- Used for door pull or as matching inactive trim
- Unlocked by key from outside whenouter knob is locked by turn-button in inside knob
- Inside knob is locked and unlocked by turn-button
- *Non-keyed Locks
- **Keyed Locks
- 16-255 - Triple Option (Round, Square, Drive-in) - Standard
- 16-061 - UL Listed, Square Corner
- 16-254 - Dual Option (Round, Drive-in) - Standard
- 16-070 - Triple Option Spring Latch for handlesets
- 10-101 - Round Corner Full Lip - Standard
- ANSI/BHMA A156 .2-2011 Commercial Grade 3
- Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
- Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
- 1 5/8" x 2 1/4", radius corner, full lip, no box
- Adjustable for 2 3/8" or 2 3/4"
- 5-pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two brass cut keys per lock, 5-pin, C section
- Bright Brass (US3)
- Antique Brass (US5)
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Satin Stainless Steel (US32D)
- Aged Bronze
- *Non-standard finishes are not available
- Full-color swatch examples available on inside Levers tab
