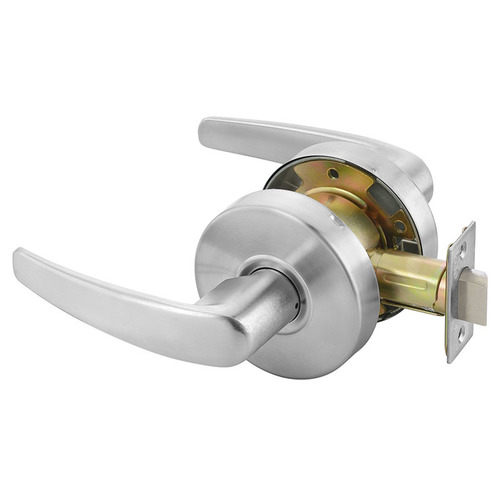

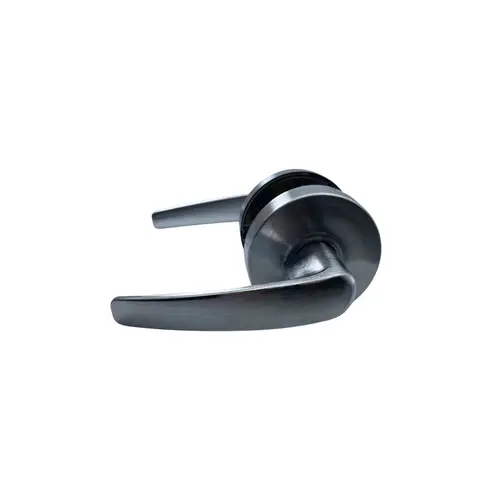

Yale Commercial MO4601LN 626 Passage Monroe Lever Grade 2 Cylindrical Lock Satin Chrome Finish
Item #: MO4601LN 626 by Yale
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- ANSI / BHMA A156.2 Grade 2
- ANSI/BHMA Certified ANSI/BHMA A156.2, Series 4000 Grade 2.
- UL Fire Rated Up to 3 Hours
- Adjustable from 1-3/8" to 1-3/4" Door Thickness
- Backset The 4600(LN) series cylindrical locksets are available with a 2-3/4" (70mm) standard or 2-3/8" (60mm) optional backset.
- Universal Front for Both Flat and Beveled Door Edges
- Non Handed
- Door thickness Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm).
- Installation Fits ANSI/BHMA A156.115, which covers Hardware Preparation in Steel Doors and Frames and ANSI/BHMA A156.115-W for Wood Doors with Wood or Steel Frames.
- Latchbolts 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt deadlocking or plain supplied standard. See page 6 for optional latchbolts.
- Strikes ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard for lever. T-Strike 2-3/4" x 1-1/8" x 1-1/4" (70mm x 29mm x 32mm) lip to center supplied standard for knob. See page 7 for optional strikes.
- Warranty The 4600(LN) series cylindrical locks carry a three-year mechanical warranty
- Through-bolts 4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of through-bolts is at the discretion of the installer.
- Fire listings 4600(LN) series locksets are UL - cUL listed for use on fire doors having a rating up to and including 3 hours.
Design
Monroe
Function
Passage
Finish
Satin Chrome
Strike
1-1/4" Curved Lip
Backset
2-3/4" Backset
Color Code
626/US26D
Fire Rated
3 Hours {A}
Sub-Series
Yale-MO-4601LN
Lever Style Family
Straight Lever
Latch Bolt Material
Stainless Steel
Knob/Lever Size
5 Inch
Lever Length-Inches
5 Inch
Manufacturer Parent
Assa Abloy
Product Type
Cylindrical Lock
Features
Versatile; Economical; Secure; Strong and Reliable
Trim Material
Cast Zinc (Lever); Brass (Rose)
Product Projection
2-1/2 Inch
Strike Lip
1-1/4 Inch
Latch bolt size
2-3/4 Inch
Function Family
Passage/Hall/Closet
Function Description
Latch retracted by knobs/levers at all times
Standards
ANSI/BHMA A156.2; UL/cUL Listed
Rose/Escutcheon Trim
Round Rose
Strike Size
4-7/8" x 1-1/4"
Lever Style
MO-Monroe
Finish Family
Satin Chrome
ADA Compliant
YES
Strike Type
Curved Lip
Latch Type
Deadlatch
ANSI Function
F75
Finish Description
Satin Chrome
Latch Throw
1/2 Inch
Rose Diameter
3-3/8 Inch
Handle Type
Lever
Warranty
3 year mechanical
Application
Commercial Applications
Grade
ANSI/BHMA Grade 2
