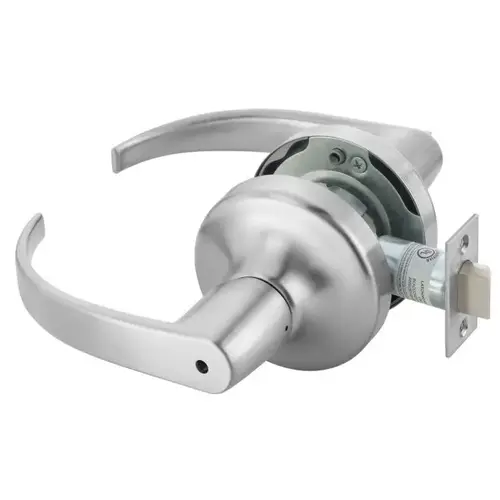

Yale PB4702LN 626 Privacy Pacific Beach Lever Grade 1 Cylindrical Lock, 693 Latch, and 497-114 Strike US26D (626) Satin Chrome Finish
Item #: PB4702LN 626 by Yale
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Door Thickness: 1-3/4" (44mm) to 2" (51mm); 1-3/8" (35mm) or 2-1/4" (57mm), please specify on order
- Strike: ANSI 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center.
- Backset: 2-3/4" (70mm)
- Handing: Non-handed
- Installation: ANSI/BHMA A156.115(-W)
- ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000 Grade 1
- Warranty: 5 year
Grade
Grade 1
Thickness
1-3/4" - 2"
Hand
Not Handed
Color
Satin Chrome
Color Code
626/US26D
Function
02-Privacy Bedroom or Bath Lock
Fire Rated
3 Hours {A}
Package Volume
0
ANSI Function
F76 - Privacy
Bolt Protection
1/2"
Latch Backset Dim
2-3/4"
Latch Number
693
Latch Type
Spring Latch (Unguarded)
Lever/Knob Design
PB - Pacific Beach
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Rose/Escutcheon Design
3-1/2 In. Diameter
Screws
Combination
Special Marks
Fire rated 3 Hours {A}
Strike Height
4-7/8"
Strike Number
497
Strike Type
ASA
Strike Width
1-1/4"
Base Material
Brass or Bronze
Finish
Satin Chrome
Dimension
5-1/2" Lever with 3-5/16" Projection and 3-1/2" Rose
Material
Cast Zinc
Backset
2-3/4" Backset
Door Thickness
1-3/8" to 1-3/4"
Strike
1-1/4" Curved Lip
Manufacturer Warranty
Limited 5 Year Warranty
UL Listing Type
UL-cUL Fire-Rated Up to 3 Hours
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/4" x 4-7/8"
Cross Bore Size
2-1/8" Bore with Optional Thru Bolts
Finish code
626
Design
Pacific Beach
Series
4700LN Series
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Lever Knob Design
Pacific Beach Lever
No of inners
1
Product Overview
Privacy, Cylindrical Lock, PB Lever Design, Satin Chrome
Yale 4700LN cylindrical locks are the idea choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN Series is certified to ANSI/BHMA Grade 1 standards and is UL Fire Listed for all functions insuring reliability and peace of mind.
Your choice of a wide variety of commercial applications.
Ideal choice for a wide variety of grade 1 commercial applications where consistent quality, ease of use and installation are required at an economical price.
