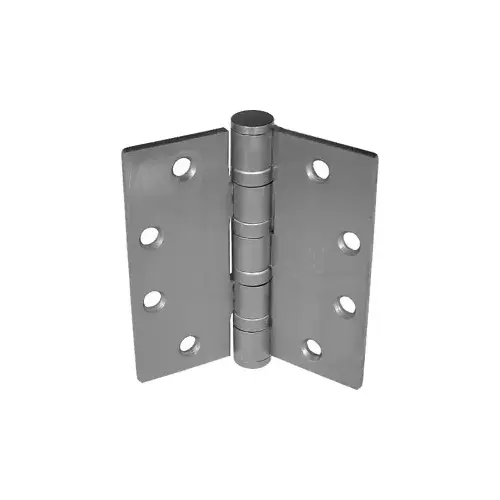

PBB Inc 4B81-US26D-4.5 X 4.5 5-Knuckle Hinge, Full Mortise Heavy Weight, Ball Bearing, 4.5" x 4.5" (4545), Ferrous Steel Base, Satin Chrome US26D/652
Item #: 4B81-US26D-4.5 X 4.5 by PBB Inc
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Alternate Part Number-1
144858
Handing
Non-Handed
Gauge
0.180
Hinge Type
Butt Hinge
Door Type
Metal Door, Wood Door
Hinge Size
4.5" x 4.5"
Mounting Holes
8 Holes
Hinge Style
Full Mortise
Hinge Rating
Heavy Weight
PBB Full Mortise Template Ball Bearing Heavy Weight Hinge
GENERAL PRODUCT INFORMATION:
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI).
HINGE SWAGING:
A standard swaging of our standard weight full mortise hinge when closed to parallel position provides a 1/16" clearance between leaves.
SPECIFICATIONS
- 4.50 (+.000/-.015) for 4-1/2" x 4"
- 4.50 (+.000/-.015) for 4-1/2" x 4-1/2"
- 4.00 ± .015 for 4-1/2" x 4"
- 4.50 ± .015 for 4-1/2" x 4-1/2"
- .180 ± .005 for 4-1/2" x 4"
- .180 ± .005 for 4-1/2" x 4-1/2"
FASTENERS
- FHMS - 12-24 x 1/2"
- FHWS - 12 x 1-1/4"
FINISHES
Steel-Polished and Plated or Bonderized and Prime Coated for Painting.
Brass-Polished and Plated
Stainless Steel-Polished and Satin Finish
