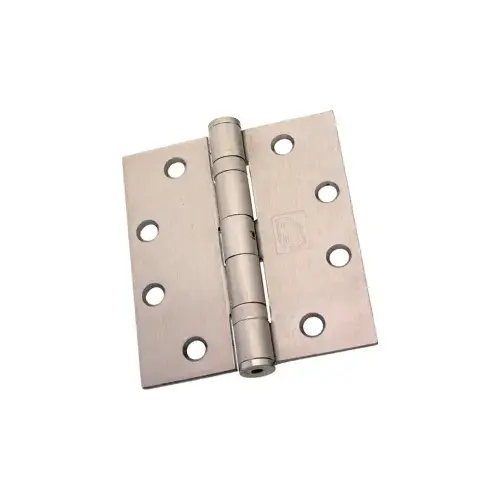

PBB Inc BB81-US3-4.5 X 4.5 5-Knuckle Hinge, Full Mortise Standard Weight, Ball Bearing, 4.5" x 4.5" (4545), Ferrous Steel Base, Bright Brass US3/633
Item #: BB81-US3-4.5 X 4.5 by PBB Inc
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Alternate Part Number-1
135377
Handing
Non-Handed
Gauge
0.134
Hinge Type
Butt Hinge
Door Type
Metal Door, Wood Door
Hinge Size
4.5" x 4.5"
Mounting Holes
8 Holes
Hinge Style
Full Mortise
Hinge Rating
Standard Weight
PBB BB81 Full Mortise Template Ball Bearing Standard Weight Hinge
GENERAL PRODUCT INFORMATION:
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI).
HINGE SWAGING:
A standard swaging of our standard weight full mortise hinge when closed to parallel position provides a 1/16" clearance between leaves.
SPECIFICATIONS
- 4.50 (+.000/-.015) for 4-1/2" x 4"
- 4.50 (+.000/-.015) for 4-1/2" x 4-1/2"
- 4.00 ± .015 for 4-1/2" x 4"
- 4.50 ± .015 for 4-1/2" x 4-1/2"
- .134 ± .005 for 4-1/2" x 4"
- .134 ± .005 for 4-1/2" x 4-1/2"
FASTENERS
- FHMS - 12-24 x 1/2"
- FHWS - 12 x 1-1/4"
FINISHES
Steel-Polished and Plated or Bonderized and Prime Coated for Painting.
Brass-Polished and Plated
Stainless Steel-Polished and Satin Finish
