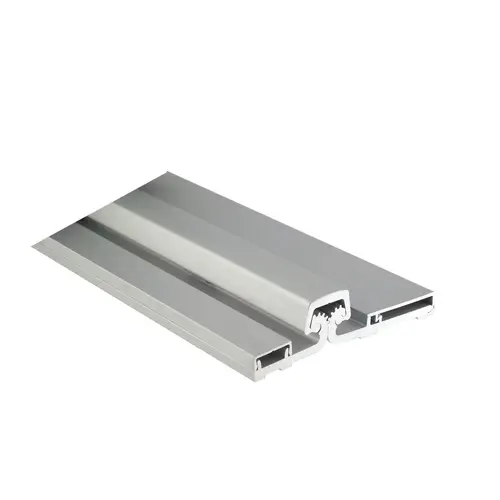

Pemko CFS83CP FS-CP Standard Duty Full Surface Center Pivot Continuous Geared Hinge Clear Aluminum

Item #: CFS83CP by Pemko

Brand: Pemko

See reviewsSee reviews
See reviews summary
In Stock

$250.89

251.00 /each
SAVE UP TO 25.09
Buying in bulk

Finish: Clear Aluminum

Size: 83"

83"
85"
95"
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Finish

Clear Aluminum

Size

83"

Length

83in.

Door Thickness

1-3/4 "

Slug

pemko-cfs83-cp-continuous-gear-hinges-cfs83cp

Fasteners

Tek Screws

OriginalName

Pemko CFS83 CP Continuous Gear Hinges

Discount

50.0%

Normalize

83"

Price Adjustment

$16.38

BHMA Grade

Grade 1

Length - Normalize

83"

Grade

Grade 1

Product Overview
FS CP Series The FS-CP Full Surface Center Pivot Continuous Geared Hinge is designed mainly for retrofit work and is applied to the exposed surfaces of the door and frame. This hinge is available in standard, heavy, and extra heavy duty models, in addition to our PemKonnect modular version that is primarily designed for freight savings and ease of transportation. Features
  • Standard, heavy, and extra heavy duty versions available
  • Applied to exposed surfaces of the door and frame
  • Easily replace butt hinges with no frame adjustments necessary
  • Custom lengths available
  • For retrofit applications
  • PemKonnect Modular Hinge option (-M)
    • Packed in a 45" box
    • Hinge segments fit together easily
    • ANSI/BHMA A156.26 and UL certified
    • Equal number of bearing as a traditional continuous hinge
    • Can be cut in field
Benefits
  • Used to replace butt hinges
  • Easy to install on exposed surfaces of the door and frame
  • Hollow metal door and frame manufacturers standard
  • Special hinge reinforcements are not required
  • Removal of hinge reinforcements in the door and frame is not advised
  • Guaranteed for the life of the opening against defects in material or workmanship
  • PemKonnect Modular option
    • Easy to transport + decrease in freight damage, shipping costs, storage space
    • No extra tools needed for assembly
    • Meets building construction and fire code requirements
    • Supports the same weight requirements
    • Easily modified for custom lengths
Specifications
  • Grade:Grade 1
  • Hinge Material:Aluminum
  • Hinge Mounting Type:Full Surface
  • Hinge Strength:Heavy Weight
  • Handing:Non-handed
  • Fastener:Teks, Thru Bolts
  • Fastener Type:Self Drilling, Thru Bolts
  • Maximum Door Thickness:1 3/4"
  • Minimum Door Thickness:1 3/4"
  • Maximum Door Width:4 ft
  • Maximum Hinge Length:10 ft
  • Minimum Hinge Length:79"
  • Maximum Swing:180 degree
  • Minimum Hinge Clearance:1/16"
  • Weight:1.29lbs. per foot
Certifications
  • Health Product Declaration (HPD)
  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
  • ANSI/BHMA Standard A156.26
RESOURCES & DOWNLOADS

Pemko Installation Instructions
