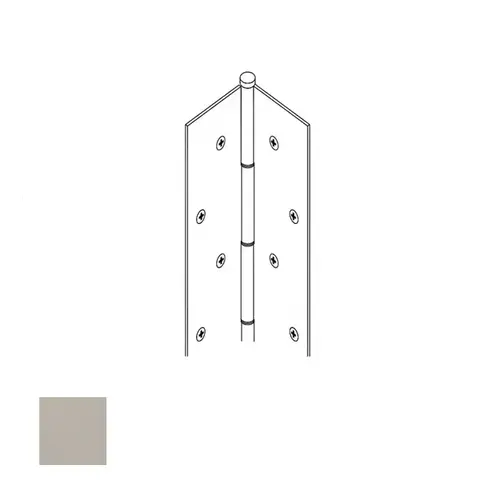

Pemko FM300-7 Full Mortise Edge Mount Continuous Hinge Satin Stainless Steel
Item #: FM300-7 by Pemko
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Stainless Steel
Function
Continuous Hinge
Finish Description
Satin Stainless Steel
Hinge Size
7 Foot
Product Type
Hinge/Pivot
Series
Pin and Barrel Hinge
Application
Used High Traffic, Frequent Use Door
Maximum Door Width
4 Foot
Hinge Type
Continuous Full Mortise
Product Length
7 Foot
ADA Compliant
No
Finish Family
Stainless Steel
Product Material
Stainless steel
Fastener Size
12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws
Function Family
Hinge/Pivot
Features
can be Used to Repair and Replace Existing Hinges on Both Fire-Labeled and Non-Labeled Opening
Manufacturer Parent
Assa Abloy
Sub-Series
FM300-7
Product Overview
The 300 Series heavy-duty 14 gauge stainless steel pin & barrel type hinge isused on many of today's high traffic high abuse interior doors. The hinge works well in locations that would normally call out for anchor hinges pivot reinforced hinges or thrust pivot unit and hinge sets. This hinge saves on special door and frame preparation charges and makes the installer's job easier. It can be used on both fire labeled and non-labeled openings. Supports doors weighing up to 600 pounds 4'0 maximum door width. 10-Year Warranty on all continuous pin & barrel hinges and 25-Year Warranty with Medical Bearings. ANSI/BHMA A156.26 Grade 1. Fire rating 3 hours - hollow metal doors 90 minutes - hollow metal and composite core wood fire doors 20 minutes - wood doors.
