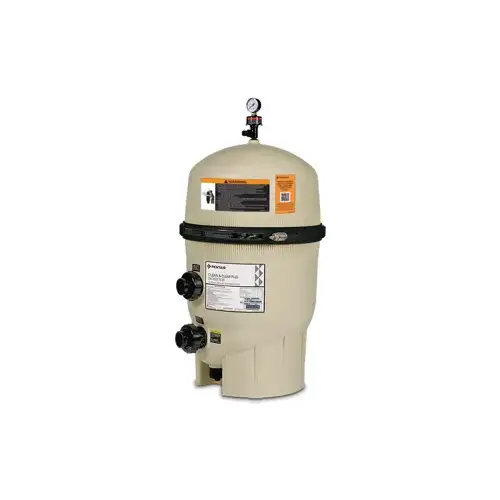

Pentair 160332 Clean & Clear Plus 520 SF Cartridge Filter
Item #: 160332 by PENTAIR WATER POOL AND SPA INC
UPC #: 788379670238
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Superior strength
- Large Filtration Capacity: The expansive filter area increases dirt-holding capacity, extending the time between cleanings.
- High Flow™ manual air relief valve
- User-Friendly Maintenance: Cartridges can be easily removed and rinsed with a garden hose, simplifying the cleaning process.
- Efficient Water Flow: Equipped with 2-inch plumbing for maximum flow and faster water cleaning.
- Integrated continuous High Flow™ internal air relief is operational only when there is unobstructed flow in the circulating system
- Robust Construction: The injection-molded tank provides superior strength and reliability.
- Pentair Aquatic Systems does not recommend flow rates above 150 gpm
- Convenient Drainage: Features a 1.5-inch, 100% drain clean-out port for quick maintenance and winterization.
- Actual system flow will depend on plumbing size and other system components
- Large filter area for increased dirt capacity
- Continuous High Flow Internal Air Relief: Ensures optimal filtration efficiency by eliminating air accumulation.
- 1-1/2 Inch, 100% drain clean-out port
- Continuous High Flow™ internal air relief
- Injection molded tank
- Balanced hydraulic flow
- Tension Control™ clamp
- 100% factory tested
- Black bulkhead unions
Application
For pool and spa (bather) applications
Shipping Dimensions
51.00x22.50x23.25
Brand
Pentair
Department
FILTERS
FiltrationArea
520 sq-ft
FlowRate
150 gpm (Residential)
Item
Cartridge Filter
MaximumContinualOperatingPressure
50 psi
MaximumOperatingWaterTemperatureInternalFilter
104 deg F
ModelNumber
CCP520
StandardsApprovals
NSF Listed, ANSI Standard 50 Certified
SubBrand
Clean & Clear® Plus
TankMaterial
Fiberglass Reinforced Polypropylene
TurnoverCapacity
8 hr - 72000 gal, 10 hr - 90000 gal, 12 hr - 108000 gal
Product Weight
83 pound
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Cartridges Required
4
Each Product Weight
83 pound
Side Clearance
6 inch
Turnover 10hrs
90000 gallon
Vertical Clearance
74 inch
Green or Energy Efficient Product
True
Minimum Sell Quantity
1
Turnover 8hrs
72000 gallon
Filtration Area
520 square feet
Design Flow Rate
150 gal/min
Standards Approvals
ANSI Standard 50 Certified
Turnover 12hrs
108000 gallon
Commercial or Residential
Residential
Pool Type
In-Ground
Effective Filtration Area
520 sq ft
Product Overview
The Pentair Clean & Clear Plus Cartridge Pool Filter (Model 160332) is engineered to provide exceptional water clarity with minimal maintenance. Its durable, corrosion-resistant, injection-molded, fiberglass-reinforced polypropylene tank ensures long-lasting performance. The filter utilizes four nonwoven polyester cartridges, offering a substantial filtration area of 520 square feet, which efficiently captures dirt and debris without the need for backwashing.
This filter is part of Pentair's Eco Select Brand, highlighting its energy-efficient design. Efficient water flow allows for the use of smaller pumps or lower pump speeds, reducing energy consumption. Additionally, rinsing cartridges instead of backwashing conserves water.
