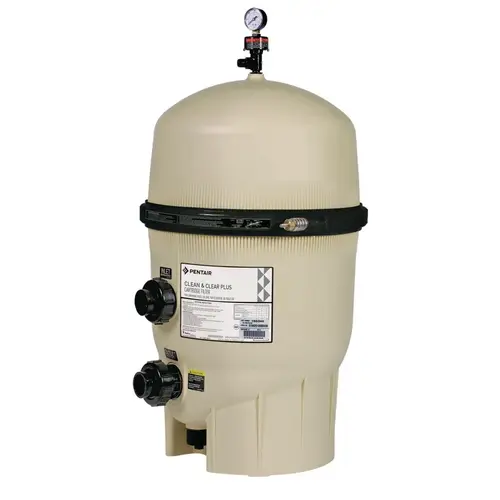

Pentair Clean & Clear(R) Plus CCP320 Cartridge Filter; 320 sq-ft, 120 gpm
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
Pentair 160340Click To Copy Clean & Clear Plus Cartridge Filters, 320 sq. ft, 21.5" Diam, 120 GPM, 86,400 gallons
Item #: 160340 by PENTAIR WATER POOL AND SPA INC
UPC #: 788379670283
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Superior strength
- High Flow™ manual air relief valve
- Integrated continuous High Flow™ internal air relief is operational only when there is unobstructed flow in the circulating system
- Pentair Aquatic Systems does not recommend flow rates above 150 gpm
- Actual system flow will depend on plumbing size and other system components
- Large filter area for increased dirt capacity
- 1-1/2 Inch, 100% drain clean-out port
- Continuous High Flow™ internal air relief
- Injection molded tank
- Balanced hydraulic flow
- Tension Control™ clamp
- 100% factory tested
- Black bulkhead unions
Application
For pool and spa (bather) applications
Shipping Dimensions
39.00x22.00x22.00
Brand
Pentair
Department
FILTERS
FiltrationArea
320 sq-ft
FlowRate
120 gpm (Residential)
Item
Cartridge Filter
MaximumContinualOperatingPressure
50 psi
MaximumOperatingWaterTemperatureInternalFilter
104 deg F
ModelNumber
CCP320
StandardsApprovals
NSF Listed, ANSI Standard 50 Certified
SubBrand
Clean & Clear® Plus
TankMaterial
Fiberglass Reinforced Polypropylene
TurnoverCapacity
8 hr - 57600 gal, 10 hr - 72000 gal, 12 hr - 86400 gal
Product Weight
70 pound
Maximum Working Pressure
50 pounds per square inch
Product Height
43 inch
Maximum Flow Rate
120 gal/min
Pipe Size
2 inch
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Cartridges Required
4
Each Product Weight
70 pound
Side Clearance
6 inch
Vertical Clearance
62 inch
Green or Energy Efficient Product
True
Inlet/Outlet Sizes
1.5 inch
Minimum Sell Quantity
1
Turnover 8hrs
57600 gallon
Filtration Area
320 square feet
Filter Tank Molding Type
fiberglass
Filtration Rate
120 GPM/ft2
Plumbing Size
2 inch
Design Flow Rate
120 gal/min
Standards Approvals
ANSI Standard 50 Certified
Turnover 6hrs
43200 gallon
Turnover 12hrs
86400 gallon
Commercial or Residential
Residential
Pool Type
In-Ground
Effective Filtration Area
320 sq ft
