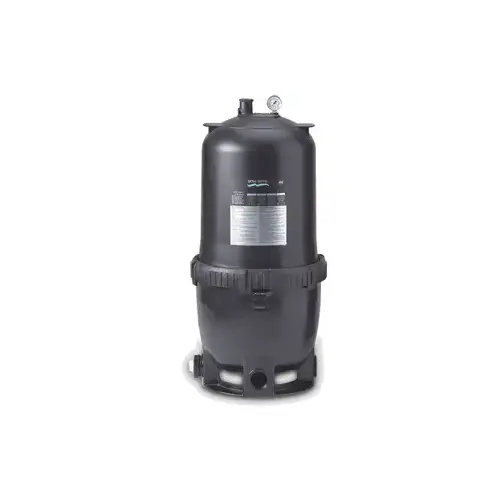

STA-RITE PLM300 System:2 300 SF Modular Media Filter
Item #: PLM300 by PENTAIR WATER POOL AND SPA INC
UPC #: 022315309838
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Typical installation - aboveground pools, inground pools, and inground hot tubs
- High Dirt-Holding Capacity: The balanced flow design ensures complete media coverage, allowing for greater dirt accumulation and longer filter cycles.
- Quality construction - durable two-piece tank housing constructed of rugged ABS thermoplastic to ensure a long-lasting tank life
- Durable Construction: The two-piece tank housing is constructed of rugged ABS thermoplastic, ensuring long-lasting durability.
- Compact Footprint: Its small diameter makes the System:2 filter a perfect fit for both new and retrofit installations.
- Easy access - Posi-Ring® locking ring provides fast access to tank internals
- Innovative design - the innovative balanced flow design first introduced with the System:3® Mod Media filter is now available in the smaller System:2™ filter, virtually maintenance-free operation for pools of all sizes
- Easy Maintenance: The Posi-Ring locking ring provides safe and quick access to internal components, simplifying routine maintenance.
- Low maintenance - complete media coverage combined with shallow pleats means greater dirt holding capabilities, resulting in longer filter cycles and less cleaning
- Large drain plug - filter includes 2 Inch NPT drain ports, which are provided with reducer bushing and 1-1/2 Inch drain plug
- No backwash valve required
Application
For small inground and aboveground pools
Shipping Dimensions
20.75x20.50x39.00
Brand
Pentair
Department
FILTERS
FiltrationArea
300 sq-ft
FlowRate
113 - 150 gpm (per sq-ft)
Item
Modular Media Filter
MaximumContinualOperatingPressure
50 psi
MaximumOperatingWaterTemperatureInternalFilter
104 deg F
StandardsApprovals
NSF Listed, ANSI Standard 50 Certified
SubBrand
System:2™
TankPortSize
2 Inch
TurnoverCapacity
6 hr - 41 - 54000 gal, 8 hr - 54 - 72000 gal, 10 hr - 68 - 90000 gal (Flow Rate x 60 x Hours)
Product Weight
51 pound
Maximum Working Pressure
50 pounds per square inch
Product Height
37.625 inch
Maximum Flow Rate
113 gal/min
Pipe Size
2 inch
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Tank Material
Fiberglass
Distance Between Inlet/Outlet
2.25 inch
Cartridges Required
4
Each Product Weight
51.25 pound
Side Clearance
6 inch
Inlet/Outlet Sizes FIT
NPT
Distance Inlet and Base
2.25 inch
Vertical Clearance
57 inch
Inlet/Outlet Sizes
2 inch
Minimum Sell Quantity
1
Tank Color
Black
Filtration Area
300 square feet
Plumbing Size FIT
NPT
Distance Outlet and Base
2.25 inch
Filtration Rate
300 GPM/ft2
Tank Port Size
2 inch
Plumbing Size
2 inch
Design Flow Rate
113 l/min
Standards Approvals
ANSI Standard 50 Certified
Commercial or Residential
Residential
Pool Type
In-Ground
Effective Filtration Area
300 sq ft
FilterArea
300 square feet
Recommended Pool Size
Suitable for pools up to 72,000 gallons, based on an 8-hour turnover rate
Product Overview
The Pentair Sta-Rite System:2 Modular Media Filter (Model PLM300) is engineered to deliver superior filtration performance for both aboveground and inground pools. Utilizing advanced media technology and a balanced flow design, this filter offers dirt-loading capabilities up to 15 times greater than sand filters of equivalent size, resulting in extended periods between cleanings and minimal maintenance.
The PLM300 filter is compatible with the Sta-Rite System:2 Modular Media Replacement Cartridge (Part Number 27002-0300S), which provides 300 square feet of filtration area.
The PLM300 filter is compatible with the Sta-Rite System:2 Modular Media Replacement Cartridge (Part Number 27002-0300S), which provides 300 square feet of filtration area.
