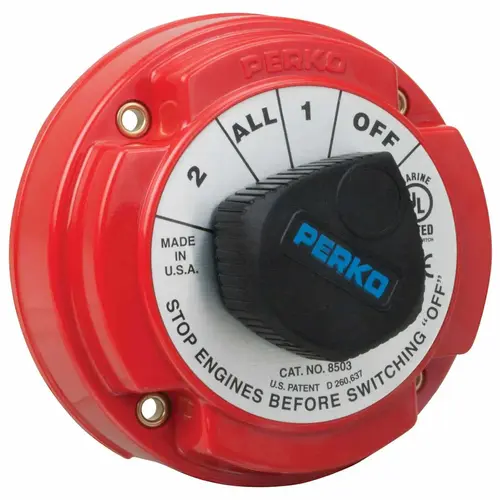

PERKO 8503DP PERKO Medium Duty Battery Selector Switch with AFD Red

Item #: 8503DP by PERKO

Brand: PERKO

See reviewsSee reviews
See reviews summary

$101.71

/each
SAVE UP TO 10.17
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Make before break feature allows switching between 1" All" and 2" while the engine is running
  • Alternator field disconnect feature to protect alternator diodes if the switch is turned to the off" position while the engine is running
  • Fiber reinforced polycarbonate construction
  • Easy turn knob
  • Ignition protected
  • Five-year warranty
  • Switch Type: Dual Battery switch disconnect
  • Switch Positions: 4
  • Battery Combine: Yes
  • Alternator Field Disconnect: yes
  • Maximum Voltage: 6V-50V
  • Continuous Rating: 250A
  • Intermittent Rating (duration): 360A
  • Cranking Rating (30Sec): N/A
  • Battery Inputs: 2
  • Cable Size to meet ratings: N/A
  • Mounting Holes: # 10 Screws
  • Terminal Stud size: 5/16"
  • Dimensions: 5 1/4"dia x 2 5/8" D
  • Weight: 1 Lb. (estimated)
  • Approvals: UL Listed, CE UKCA certification
  • Made in the USA

Voltage

6 to 32 Volts DC

Dimensions

5 1/4" Diameter x 2 5/8" Depth

Type

Switch: Off/1/All/2

Warranty

FIVE YEARS

Color

Red

Amperage

250 Amps

ISO Approved

UL Listed , CE

Product Overview
PERKO Medium Duty Battery Selector Switch with AFD A tried and true design for a wide variety of applications. Perko s medium duty battery selector switches are super versatile. Because they are ignition protected, this switch can be installed almost anywhere, including engine rooms of gasoline powered boats. Compatible with 6V to 50V systems. Some models offer an alternator field disconnect feature to protect alternator diodes in the event the switch is turned to the off" position while the engine is running.
