30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Requires a third less space than Perko medium duty switches
- 90 rotation to select all 4 positions
- Ignition protected and can be installed in engine rooms of gasoline powered boats
- Make before break feature allows switching between 1" All" and 2" while the engine is running
- Fiber reinforced polycarbonate construction
- Removable panels make cable routing easy
- Easy turn knob
- UKCA certification
- Five-year warranty
- Made in The USA
- Switch Type: Dual Battery switch disconnect
- Switch Positions: 4
- Battery Combine: Yes
- Alternator Field Disconnect: No
- Maximum Voltage: 6V-50V
- Continuous Rating: 315A
- Intermittent Rating (duration): 450A
- Cranking Rating (30Sec): N/A
- Battery Inputs: 2
- Cable Size to meet ratings: N/A
- Mounting Holes: # 10 Screws
- Terminal Stud size: 5/16"
- Dimensions: 4" x 4" x 3 " D
- Approvals: UL Listed 716B, CE
Voltage
6 to 32 Volts DC
Dimensions
4 3/4" Diameter x 1 7/8" Depth
Type
Switch: Off/1/All/2
Warranty
FIVE YEARS
Color
Red
Amperage
315 Amps
ISO Approved
UL Listed , CE
Product Overview

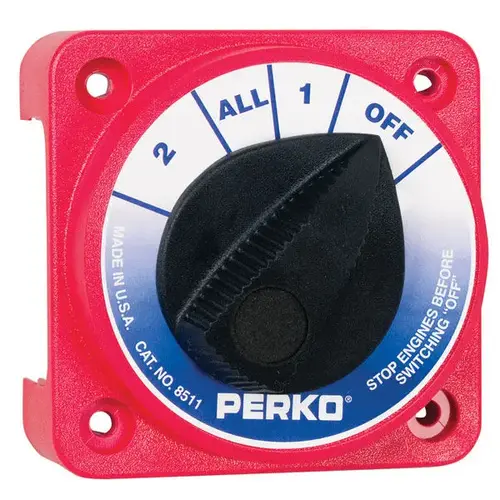

A tried and true design with added features and a smaller size Perko s compact medium duty battery disconnect and selector switches are a smaller version of their versatile medium duty switches. They pack all of the features that we ve come to love of the Perko medium duty switches into a third less space and added some features to make them more user friendly. A new switching configuration has an easy to grip knob and requires only a 90 degree turn to make all of the selections. Perko also increased its rating to carry 315 amperes. The bolt pattern is shared with the larger medium duty switch, so changing them out is easy. Because they are ignition protected, these selectors and disconnects can be installed almost anywhere, including engine rooms of gasoline powered boats. Four removable panels provide easy access for battery cables.
