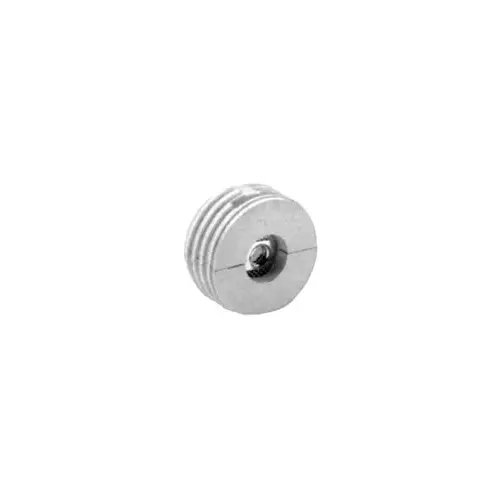

Peter Meier, Inc. 16.9234.000-50 10.5mm x 20mm Drawer Front Adjusting Screw, White, Box of 50
Item #: 16.9234.000-50 by Peter Meier, Inc.
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Diameter
20 mm
Product Type
Drawer Front Adjuster
Diameter (mm)
20 mm
Thickness (mm)
10.5 mm
Mount Type
Screw-On
Product Overview
Instead of removing the drawer repeatedly to move the adjustment screw in the slides, the adjusting is done by moving the drawer front itself
Also allows all of the slide screws to be installed at the shop, not the job site. The fitting allows about 1/4" of movement up or down and left or right. The reverse barb design of the cam provides a tight fit and retards the chance of the cam pulling out
Material: Nylon cam with steel threaded "floating" insert
Specifications: 20 mm diameter
The cam accepts #8 -32 thread machine screws. The length is dependent on the thickness of the sub-front and the drawer front
Packing: As shown below.
Sold In: Full box quantities only.
Also allows all of the slide screws to be installed at the shop, not the job site. The fitting allows about 1/4" of movement up or down and left or right. The reverse barb design of the cam provides a tight fit and retards the chance of the cam pulling out
Material: Nylon cam with steel threaded "floating" insert
Specifications: 20 mm diameter
The cam accepts #8 -32 thread machine screws. The length is dependent on the thickness of the sub-front and the drawer front
Packing: As shown below.
Sold In: Full box quantities only.
