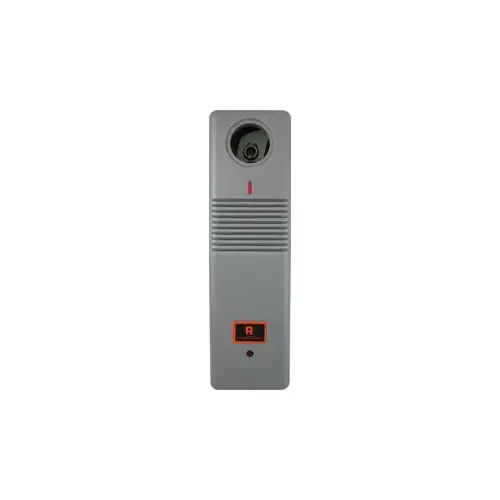

Alarm Lock PG21MS PG21 Series Narrow Stile Door Alarm, Metallic Silver
Item #: PG21MS by Alarm Lock
UPC #: 785026014759
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Key activated
- Two Arming Modes
- For Use on Standard and Narrow Stile Doors
- Runs on 9-Volt Alkaline Battery
- 2-Year Manufacturer Warranty
Manufacturer Warranty
2 Year
Theme
Commercial
Configuration
Door Alarm
BHMA Certification
Grade 1
Approved for Commercial Use
Yes
Power Source
Battery
Product Class
Commercial
Material
Other Metals
Finish
Metallic Silver
Series
PG Series
Color
Metallic Silver
Color Code
628/US28
Battery Operated
Yes
Dimensions
9-1/2" W x 2" H x 2-3/8" D
Interior/Exterior
Interior/Exterior
Pack Size
1
Features
Status Indicator; Self Contained and Dual-Tamper Supervised; Multiple Door Monitoring; Continuous Power
Indoor/Outdoor
Indoor, Outdoor
Product Type
Electronic Exit Device/Trim
UNSPSC
46171604
Alternate Part Number-1
100955
Mounting Type
Surface
Application
Schools; Nursing Homes; Restaurants and Theatres
Function
Door Alarm
Product Length
9 Inch
Product Width
2-1/2 Inch
ADA Compliant
No
Contact Ratings
1 A at 24VAC/DC
Product Depth
2-3/8 Inch
Sound Level
95 dB
Cylinder Type Used
Mortise
Battery Used
9V Alkaline
Manufacturer Parent
Napco Security Technologies
Entry Delay Time Options
15 sec; 1 min 15 sec; 3 min 15 sec
Sub-Series
EAC_Door Prop Alarms_alarm_lock_1
Voltage
9V
Cylinder Included
No
Cylinder Type
Mortise Cylinder
Access Type
Alarm
Power Supply Type
Battery
Height
3
Length
12.63
Width
5
MADE IN THE USA
No
exit device type
Alarmed Exit Device
Package Quantity
1
Master Key
False
UL Listed
No
Door Handing
Non-Handed
Hardware Included
False
Hex Key Dogging
False
AbilityOne
No
Lever/Pull Included
False
Commercial/Residential
Commercial/Residential
For Door Type
Single;Double
Door Lock Function
Alarmed Exit
GSA Approved
No
Mount Type
Surface
TAA/BAA Compliant
Yes
Product Overview
PG21 SeriesSurface-Mount Narrow Stile Door Alarms
Improve security at any door and stops security vulnerability from doors propped open, for innocent and even felonious reasons in schools, nursing homes, restaurants, stores and theaters.
Two selectable arming modes -
Always armed mode – when key is turned counter clockwise to the disarm position, the key cannot be removed. To remove key, turn back to arm mode, thus keeping unit armed always.
Standard arming mode – when key is inserted turning counter clockwise will disarm and key can be removed. Turning key clockwise will arm and key can be removed.
- Status Indicator – The LED will indicate RED when armed
- Long-life 9V battery (supplied), low battery alert
- Entry Delay Time Options: Includes 15 seconds; 1 min. 15 sec. & 3 mins 15 sec.
- For use on standard size and narrow stile doors, sleek model design key-activated door alarm
- Sweeping Siren over 95db alarm &/or strobe
- Unauthorized use of door causes alarm to sound and activates LED indicator &/or optional strobe
- Options include continuous alarm, minute shutdown with auto reset andexit/entry delay
- Uses standard mortise cylinder (not included)
- Self contained and dual-tamper supervised
- Continuous Power with the addition of external power supply
- Multiple Door Monitoring permitted with external reed switches
- Easy installation
- For exterior key control, optional RIM cylinder may be used
- PG21MSS/PG21MBS Optional strobe unit – include a highly visible amber strobe that flashes when unit goes into alarm
- 9v battery (supplied). AC power supply can also be used as a battery back up
- Dual piezo siren measured at 95db
- Accepts most 1 1/4" mortise cylinder used for interior activation (not supplied) and standard size rim cylinder used for exterior activation (not supplied).
- Surface mounted for single or double doors
- Die cast metal
