Features
- Constructed from steel with a decorative Golden Champagne finish for use in cabinet hardware applications.
- Measures 2-1/2" in length, 1" in width, and 1-7/16" in projection, suitable for standard cabinet door sizes.
- Designed for 3/4" thick full inset cabinet doors, compatible with both frameless and face-frame cabinet types.
- Features a partial wrap, non-mortise design with a decorative ball tip for functional cabinet door movement.
- Utilizes free swinging motion technology, allowing for smooth operation of cabinet doors.
- Includes 1/16" horizontal and vertical adjustments to assist with accurate door alignment during installation.
- Comes with No.6 flat head screws in 5/8" and 1/2" sizes for secure screw-on mounting to cabinet frames.
Includes Hardware
#6 Flat Head Screw X 5/8In & #6 Flat Head Screw X 1/2In
Product Width (in.)
1
Product Length (in.)
2-1/2
Product Projection Fraction (in)
1-7/16
Product Projection (mm)
37
Product Weight
0.12
Size
3/4" Door Thickness
Finish
Golden Champagne
Master Pack Height
0
Master Pack Length
0
Master Pack Weight
0
Master Pack Width
0
Master Pack Qty
0
Product Width (mm)
25
Product Length (mm)
64
Color/Finish
Golden Champagne
Overlay (In.)
3/4 in
Cabinet Type
Frameless, Face-frame
Door Thickness (in.)
3/4 in
Width (in)
1 in
Product Type
Non-Mortise Ball Tip Hinge
Motion Technology
Free swinging
Material Type
Steel
Projection (In.)
1-7/16 in
Length (in)
2-1/2 in
Mount Type
Screw-On
Height
0
Length
0
Weight
0
Quantity
0
Width
0
Product Overview

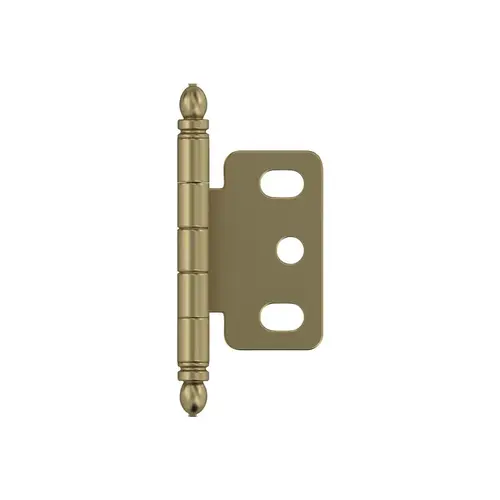

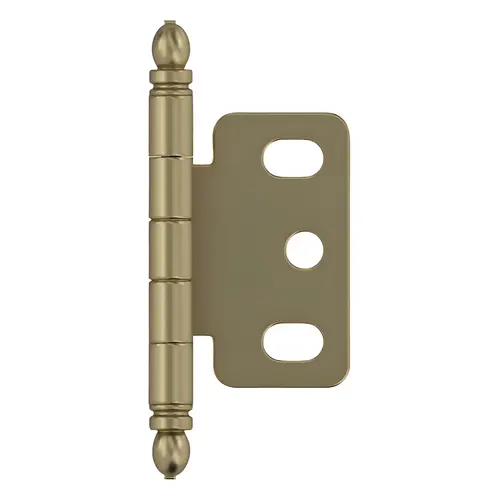

The Full Inset Partial Wrap Ball Tip Hinge is a non-mortise hinge designed for 3/4" thick full inset cabinet doors. Constructed from steel, this hinge features a partial wrap design and a decorative ball tip. It is suitable for both frameless and face-frame cabinet types. The hinge measures 2-1/2" in length, 1" in width, and has a projection of 1-7/16". It utilizes a free swinging motion technology and is installed using a screw-on mount type. The hinge includes No.6 flat head screws in 5/8" and 1/2" lengths for mounting. It provides 1/16" horizontal and vertical adjustments for precise alignment. The finish is Golden Champagne, providing a consistent aesthetic for cabinet hardware. This functional hardware item is tested for cycle life, strength, and finish quality in conditions exceeding KCMA certification requirements and BHMS standards. The hinge is designed to be paired with cabinet knobs and drawer pulls in matching finishes to maintain a consistent look across cabinetry. Each pack includes 1 total hinge with the necessary mounting hardware for installation.
