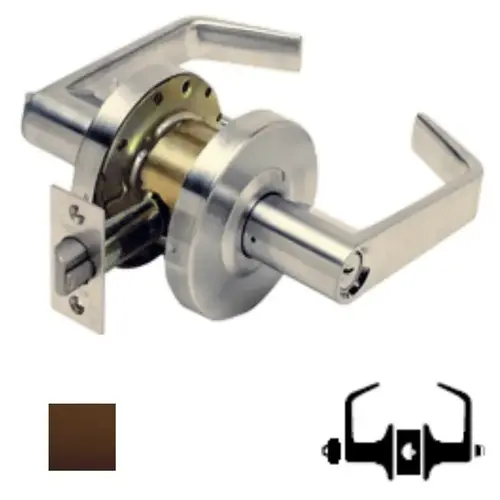

PLS L253FW-10B-2-3/4 Grade 2 Entry/Office Lever Lock With Clutch Feature Oil Rubbed Dark Bronze
Item #: L253FW-10B-2-3/4 by PLS-50
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Included Components
(2) Nickel Silver Per Lock Cylinder
Series
L200 Series
Warranty
1 Year
Backset
2-3/4 Inch
Strike Type
ANSI ASA Strike
Color Code
613/US10B
Features
Latchbolt Operated by Lever From Either Side; Outside Lever Locked by Push Button From Inside; Unlocked by Key From Outside or Rotating Inside Lever
Door Thickness
1-3/8" to 2"
Cylinder Material
Brass
Rose Diameter
3-1/4 Inch
Standards
ANSI A156.2, Series 4000; ANSI A117.1; UL/ULC Listed for 3 Hour Fire Door
Function Family
Entry/Entrance/Office
Handle Type
Lever
ADA Compliant
YES
Grade
ANSI/BHMA Grade 2
Hand
Non-Handed
ANSI Function
F81
Latch Type
Deadlocking
Strike Material
Stainless Steel
Finish Description
Oil Rubbed Dark Bronze
Finish
Oil Rubbed Dark Bronze
Strike Size
1-1/4" x 4-7/8"
Keyway
Schlage_C
Function
53-Entry/Office
Cylinder Type
Conventional
Latch Throw
1/2 Inch
Finish Family
Dark Bronze
Cylinder Type Used
Conventional
Function Description
Turn button on inside locks outside knob/lever until unlocked by key or by rotating inside knob/lever. Inside knob/lever always free.
Product Type
Cylindrical Lock
Manufacturer Parent
PLS
Latch Corner
Square
Latchbolt Size
1-1/8" x 2-1/4"
Latch Bolt Material
Stainless Steel
Sub-Series
CL_Cylindrical_Locks_PLS_16
Product Overview
Entry/Office Lever Lock With Clutch Feature, 2-3/4" Backset, ASA Strike, US10B Oil-Rubbed Dark Bronze Finish, Schlage C Keyway, KD
