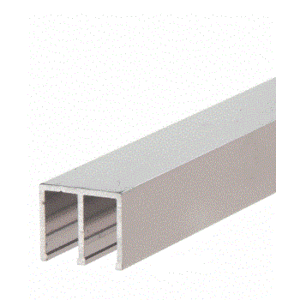

CRL 16795 Polished Aluminum Finish Rollertrack Top Track 4 m Length, 21 mm Wide, 18 mm High
Item #: 16795 by CR Laurence
3 3
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Perfect for Showcases and Display Cabinets
- Designed for 1/4" (6 mm) Tempered Glass
- Smooth Operating Nylon Rollers are Built Into the Lower Track
- Simple 'Lift and Drop' Glass Installation
- Top Channel Can Be Used as Side Jambs or for a Surround Frame
- Polished Aluminum Finish
Length
158
Type
Top
Height
3/4
Finish
Aluminum
Material
Aluminum
Width
7/8
Glazing Thickness
1/4
Finish/Color
Aluminum
Our CRL Double Roller Track System is beautifully designed to be both attractive and functional. Everything you need to install sliding glass doors into a showcase or cabinet is included. Just cut the Upper Channel and Lower Track to size and it's ready-to-install.
Smooth operating nylon rollers are spaced every 4" (102 mm) in the Lower Track, which has been pre-drilled with holes for securing it to the base. The Top Channel is easily set into place above the Bottom Track, and can even be used as a side jamb to provide a full surround frame for the glass doors.NOTE: Designed for use with 1/4" (6 mm) tempered glass, the maximum recommended panel size is 60" (1.52 m) tall by 30" (792 mm) wide, or a ratio of 1.5:1. Recommended minimum overlap of glass panels is 1-1/2" (38 mm).
General Glass Cutting Guidelines: Glass Height = Opening Height minus 7/8" (22 mm).
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
.
