This CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel or Brass
Tubing. *1-1/4" (32 mm) Diameter Stainless
Steel (CD24X24BS125 Model only).
Projection: 3" (76 mm) from Face of Glass to Outside of Handle
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

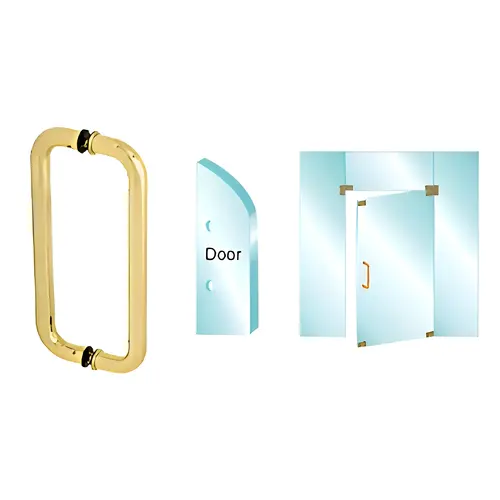

CRL Polished Brass 12" Glass Mounted Standard Pull Handle
Item #: CM12X12BR by CR Laurence
Brand: CRL
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Use Monolithic Tempered Glass
- Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Stocked in Up to Five Architectural Finishes
Mounting Holes Center-to-Center
12" (305 mm)
Center-to-Center
12" (305 mm)
Finish
Polished Brass
Overall Length
12
Material
Brass
Center to Center
12
Glazing Thickness
3/8 To 3/4
Finish/Color
Polished Brass
Style Washers
Yes
Style Washer Diameter (Inches)
1-1/4"
Diameter
1"
Mounting Type
Back-To-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Product Overview
This CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel or Brass
Tubing. *1-1/4" (32 mm) Diameter Stainless
Steel (CD24X24BS125 Model only).
Projection: 3" (76 mm) from Face of Glass to Outside of Handle
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
