CRL SR4TPB3812SL Polished Brass 4" Tapered Sidelite Rail 120" Stock Length

1 reviews

$887.86 /stock length

Item #: SR4TPB3812SL by CR Laurence

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

CRL SR4TPB3812SL Polished Brass 4" Tapered Sidelite Rail 120" Stock Length

1 1 reviews

$887.86 /stock length

Item #: SR4TPB3812SL by CR Laurence

Special Order*

Usually ships in 1-2 weeks

QTY
+
+ Add to Wishlist
Buy In Bulk

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

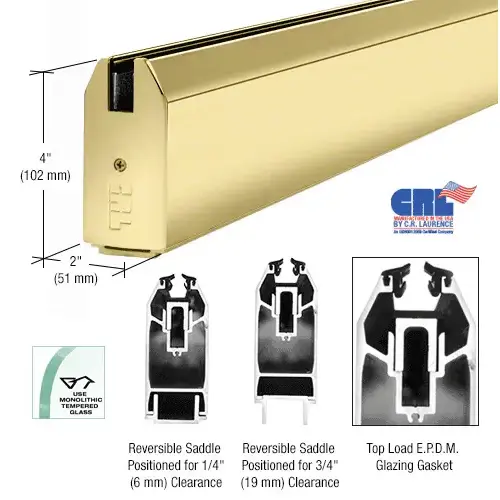

  • Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
  • Provides Even Sightline With Our Door Rails
  • Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
  • Ready-to-Ship Models From CRL Inventory
  • Use Monolithic Tempered Glass
  • Matching Door Rails Available for an Even Sightline

Length of Rail

120 in (3.05 m)

Minimum Order

1 Stock Length

Length

120" (3.05 m)

Finish

Polished Brass

Type

For 1/4"" Glass & Reversible

The CRL 4" (102 mm) Tapered Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant. Also available in this size are our 4" (102 mm) Square Sidelite Rails to match our Square Door Rails.
Available in several finishes in 120" (3.05 m) lengths and in extra long 240" (6.10 m) lengths, they match heights to both floor mounted and 1/2" (13 mm) threshold doors using our Reversible Saddle. Use the Sidelite Rails alone for your upper rails, and with our Aluminum Neoprene Setting Blocks, lifting the glass into the upper rail and lowering into the bottom rail. This will give you a 9/16" (14 mm) glass retention in both the top and bottom channels. Complete the job by installing the Roll-In EPDM Gaskets and matching finish End Caps.
ORDERING INFORMATION:
• Sidelite Rails on this page come with vinyl to glaze 1/2" (12 mm) glass. If using 3/8" (10 mm) glass, GG38 Series Vinyl must be ordered separately.
• All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.10 m) lengths.
• Custom lengths and finishes are also available.
• SREC4T Series End Caps and Cat. No. UCSB4 Setting Blocks must be ordered separately. Important Notes: Shown with End Caps which must be ordered separately.
