Polished Brass Grande Series Adjustable Wall Mount Offset Back Plate Hinge

Roll over image to zoom in

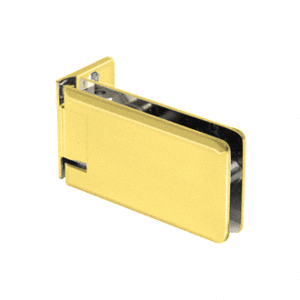

CRL GRA344BR Polished Brass Grande Series Adjustable Wall Mount Offset Back Plate Hinge

Item #: GRA344BR by CR Laurence

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Available in Four Models
  • For 3/8" to 5/16" (10 to 8 mm) Thick Tempered Glass
  • Provided with Allen Wrench
  • Wall Mount Offset Back Plate

sub category

CRL Polished Brass Adjustable Offset Wall Mount Grande Series Hinge

Height

2-3/8

Width

4-1/4

Finish

Polished Brass

Back Plate

Offset

Glazing Thickness

5/16 To 3/8

Edge Profile

Beveled

Adjustable

Yes

Finish/Color

Polished Brass

5 Degree Pre-Set

No

Maximum Door Width - 2 Hinges (Inches)

31

Maximum Door Width - 3 Hinges (Inches)

34

Maximum Door Weight - 3 Hinges (Pounds)

134

Maximum Door Weight - 2 Hinges (Pounds)

90

Mounting Type

Wall Mount

Material

Brass


The CRL Adjustable Grande Series brings an added dimension to the unique Grande Series. Adjustment to accommodate the mounting angle (up to 90 degrees) is done following the initial installation. By simply loosening the Allen Screws on the rear of the hinge (using the provided Allen Wrench), the door may then be positioned to the desired closing position. By re-tightening the Allen Screws, the door will then close to the altered position.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 31" (787 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 134 lbs. (61 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Grande can beside mounted at top and bottom corners of the door, or anywhere in between. Corner mounting allows more glass exposure.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Precise Closing to 0 degree
Cut-Out and Hole Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

.
