30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure your are satified with our products.
- For Glass or Wood Shelves 1/8" to 15/16" (3 to 24 mm) Thick
- Work with Shelves Up to 10" (254 mm) Protrusion From Wall
- Use Monolithic Tempered Glass
Height (Closed Position)
2-1/16 in (52 mm)

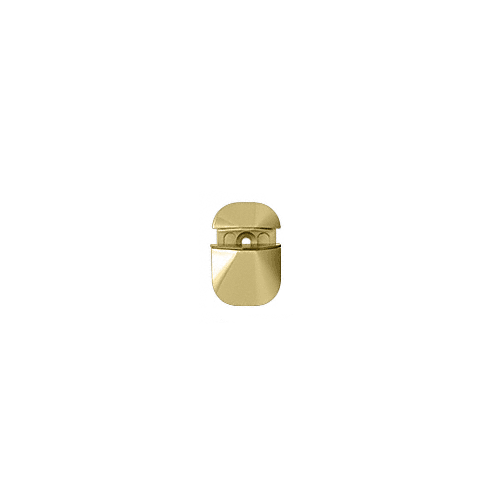

The Clamps are secured with one screw (included) to the substrate. An adjustment screw is also included to accommodate various shelf glass thicknesses. Maximum recommended weight per pair of DL631 Regular Clamps when correctly installed is 44 pounds (20 kg).
NOTE: Maximum recommended weight for two each of DL661 Heavy-Duty Clamps correctly installed is 50 pounds (23 kg).
Thickness Range: 1/8" to 15/16" (3 to 24 mm)
No Glass Fabrication Required
Includes: Adjusting Screw, Mounting Screw, Foam Gasket
Maximum Shelf Depth and Weight: 10" (254 mm), 44 lbs. (20 kg)
