CRL PHA1 North American Patch Door Kits come with all the hardware to complete a single free-swinging door (except the glass). Pivot setback is 2-3/4" (70 mm). Floor closers with tapered spindles (ordered separately) may be used with this Kit.

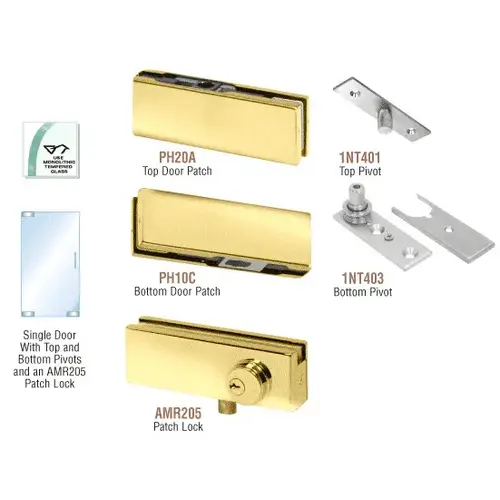

Kit Contains:
1 - PH20A Top Door Patch
1 - PH10C Bottom Door Patch
1 - 1NT401 Top Pivot
1 - 1NT403 Bottom Pivot
Gaskets for 3/8" or 1/2" (10 or 12 mm) Tempered Glass (holes and notches are required in the glass).
Kits with lock also come with one each Cat. No. AMR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL PHA1LBR Polished Brass North American Patch Door Kit - With Lock
Item #: PHA1LBR by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- Available With or Without Locks
- For 3/8" or 1/2" (10 or 12 mm) Glass
Lock
With Lock
Finish
Polished Brass
Material
Brass
Pivot Backset (Inches)
2 3/4
Configuration
Single
Glazing Thickness
3/8, 1/2
Door Type
F Style Glass Door
Finish/Color
Polished Brass
Pivot Setback
2-3/4
Product Overview
CRL PHA1 North American Patch Door Kits come with all the hardware to complete a single free-swinging door (except the glass). Pivot setback is 2-3/4" (70 mm). Floor closers with tapered spindles (ordered separately) may be used with this Kit.
Kit Contains:
Kits with lock also come with one each Cat. No. AMR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
