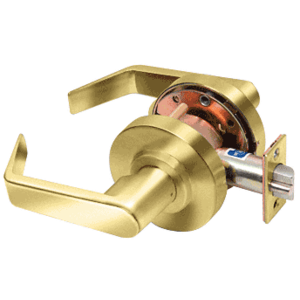

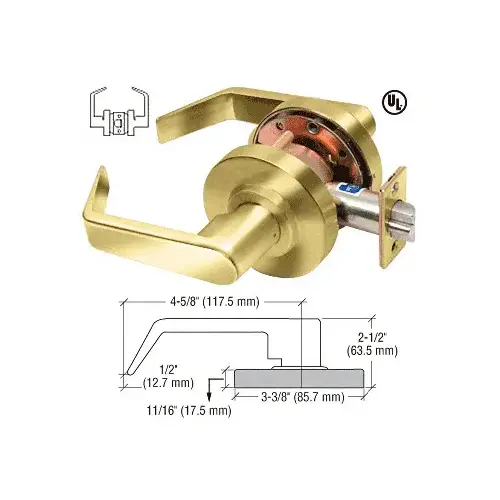

CRL D15PASSPB Polished Brass Passage Standard Grade 2 Lever Lockset
Item #: D15PASSPB by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- ANSI A156.2 Grade 2
- UL Listed
Finish
Polished Brass
Handle Length
4-5/8
Type
Standard Duty Lever Lockset
Backset
2-3/4
Handing
Non Handed and Reversible
Function
Passage
UL Listed
Yes
Includes
Strike
Category
Door Accessories
Door Type
Aluminum, Wood, Hollow Metal
Strike Width
1-1/4
Operation Type
F75 Passage Lever
Certification
ANSI A156.2 Grade 2
Door Thickness Range
1-3/8" To 1-3/4"
Finish/Color
Polished Brass
Fire Rating (Hour)
3
Strike Height (Inches)
4-7/8
Rosette Base Width (Inches)
3-3/8
Rosette Base Height (Inches)
11/16
Projection
2-1/2
These CRL Heavy-Duty Commercial Grade 1 and 2 Lever Locksets are non-handed and reversible. These Locksets are UL Listed with a 3-hour fire rating, and fit door thicknesses from 1-3/8" to 1-3/4" (35 to 45 mm) with a 2-3/4" (70 mm) backset. An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) Strike is included.
PASSAGE FUNCTION DESCRIPTION: Both Levers are always free.
.
