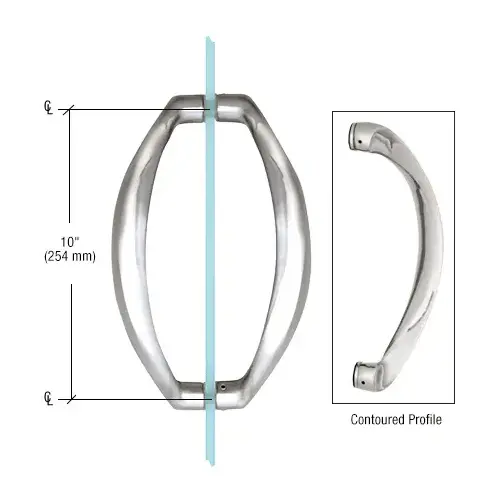

CRL CQ10X10CH Polished Chrome 10" Glass Mounted Sculptured Pull Handle
Item #: CQ10X10CH by CR Laurence
In Stock $312.88 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use 3/8" to 1/2" (10 to 12 mm) Monolithic Tempered Glass
- A Great Choice for Heavier Shower Doors
- Fits 3/8" to 1/2" (10 to 12 mm) Thick Glass
Two Diameter Holes Required
5/8" (16 mm)
Mounting Holes Center-to-Center
10" (254 mm)
Hole Diameter Required
5/8" (16 mm)
Projection From Surface
3-1/4" (83 mm)
Glass Thickness Range
3/8" to 1/2" (10 to 12 mm)
Center-to-Center Hole Spacing
10 in (254 mm)
Finish
Polished Chrome
Center to Center
10
Glazing Thickness
1/2 , 3/8
Finish/Color
Polished Chrome
Style Washers
Yes
Mounting Hole Diameter (Inches)
5/8
Style Washer Diameter (Inches)
1-1/16
Mounting Type
Back-To-Back
Mounting Center To Center (Inches)
10
The eye-catching Sculptured Style Back-to-Back Solid Pull Handles has a unique free-form design that sets it apart from other pull handles. The curved shape, combined with a distinguishing flat tapered appearance, guarantees that this Pull Handle will be noticed. Choice of 6" or 10" (152 or 254 mm) sizes.
Our offering of quality Pull Handles has grown to over a dozen distinct models in numerous different finishes. There's a handle to complement the décor of virtually any shower or wardrobe door, and each one is constructed of only the finest materials. Whether you choose a back-to-back or single-sided handle, you can rest assured that it will be easy-to-install, and will serve its purpose beautifully for many years. Custom designs and finishes are also available when you need something special.
SPECIFICATIONS:
For Use With: 3/8" and 1/2" (10 and 12 mm)
Glass Construction: Cast Solid Brass
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/16" (27 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
