SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No Glass Fabrication Required
NOTE: Clamps tighten using nylon tipped Allen screws. These Clamps are not designed to take the place of
Headers or a Support Bar. Contact CRL Frameless
Shower Technical Sales for more details.
Product Warning:
These Clamps are not designed to take the place of Headers or a Support Bar.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

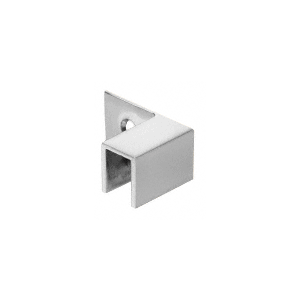

CRL S0GC37RCH Polished Chrome Right Hand "Sleeve Over" Wall Mount Glass Clamp
Item #: S0GC37RCH by CR Laurence
44 reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- Assists with Shear Forces
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Holds Glass Panels in Position While Sealant Cures
- Right-Handed as Viewed from Outside Shower
- Secured to Glass with Set Screws
- Solid Brass
Height
1" (25.4 mm)
Mounting Plate Width
2" (50.8 mm)
Width
1-3/8" (35 mm)
Finish
Polished Chrome
Type
Right Hand
Handing
Right Hand
Mounting Type
Wall Mount
Glazing Thickness
5/16 To 1/2
Material
Brass
Finish/Color
Polished Chrome
Product Overview
CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
P612** replacement screws
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No Glass Fabrication Required
NOTE: Clamps tighten using nylon tipped Allen screws. These Clamps are not designed to take the place of
Headers or a Support Bar. Contact CRL Frameless
Shower Technical Sales for more details.
Product Warning:
These Clamps are not designed to take the place of Headers or a Support Bar.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
