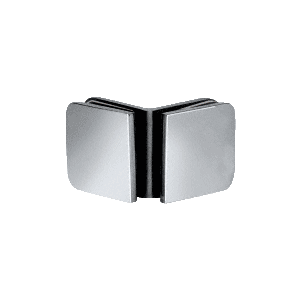

CRL R0M91CH Polished Chrome Roman Series 90 Degree Glass-to-Glass Clamp

  • Use Monolithic Tempered Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps
See Full Product Description
SALE

$34.19 /each

Qty

In stock
Quick Shipping

Usually ships in 1 business day*

SALE
+
In stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • Use Monolithic Tempered Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps

  • Product Description
  • Technical Details 9
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Height

1-15/16" (49 mm)

Minimum Order

1 Each

Width Each Plate

1-15/16 in (49 mm)

Width

1-3/4" (44 mm)

Size

1-3/4" (44 mm) Wide x 1-15/16" (49 mm) High (Each Plate)

Glass Thickness Range

5/16" to 1/2" (8 to 12 mm)

Finish

Chrome

  • Use Monolithic Tempered Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps
CRL Roman Series 90 Degree Glass-to-Glass Clamps have two versatile applications. They can be used to connect two fixed panels of glass at 90 degree, or by utilizing the wood screw that is included, as a shelf bracket or offset wall mounting clamp. They have rounded corners for a "softer" look. The Clamp has an open back so the glass can either be mitered or overlapped. Clamps are designed for use with 5/16" or 3/8" (8 or 10 mm) thick glass. A hole is required in the glass for installation. By utilizing the wood screw that is included, the clamp can be used as a shelf bracket or offset wall mounting clamp. Custom finishes are available on request. For more information contact CRL Shower Door Technical Sales Department.
SPECIFICATIONS:
  • Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
  • Material: Solid Brass
  • Includes: Gaskets and Wood Screws
  • Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) Each Panel
    NOTE: An additional set of gaskets is required
    for 5/16" (8 mm) glass (Cat. No. UCG77).
