Polished Nickel 90 Degree "Sleeve Over" Glass Clamp

Roll over image to zoom in

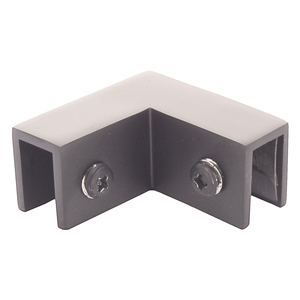

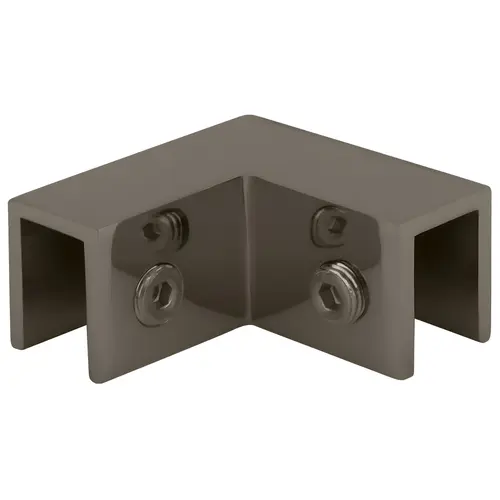

CRL S0GC90PN Polished Nickel 90 Degree "Sleeve Over" Glass Clamp

Item #: S0GC90PN by CR Laurence

4 4 reviews

In Stock $23.50 /each


Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Use Monolithic Tempered Glass
  • Assists with Shear Forces
  • For 5/16" to 1/2" (8 to 12 mm) Thick Glass
  • Holds Glass Panels in Position While Sealant Cures
  • Solid Brass


1" (25.4 mm)

Width Per Leg

2-1/16" (52.4 mm)


Polished Nickel


90 Degree

Mounting Type

Glass To Glass

Glazing Thickness

5/16 To 1/2



Glass To Glass Angle (Degrees)



Polished Nickel

Mounting Style

Glass To Glass

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws

Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No Glass Fabrication Required
NOTE: Clamps tighten using nylon tipped Allen screws. These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales for more details.
Product Warning:
These Clamps are not designed to take the place of Headers or a Support Bar.
