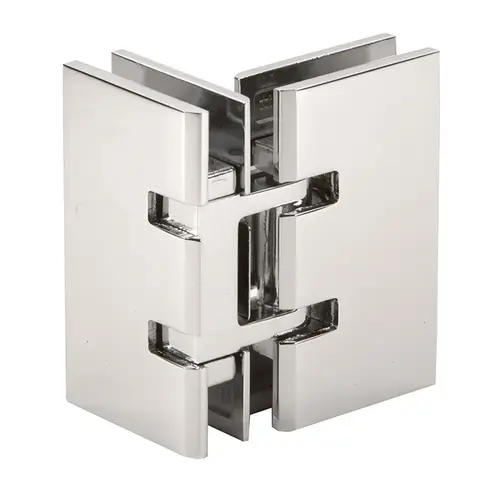

CRL SDH090PN Polished Nickel Concord 090 Series 90 Degree Glass-to-Glass Hinge
Item #: SDH090PN by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Self-Centering Action
- 90 Degree Glass-to-Glass
- Use Monolithic Tempered Glass
2 lb (907g)
3/8 to 1/2
The variety of styles and finishes in our Concord Series allows the installer/designer to create custom shower enclosures limited only by their imagination. These beautifully finished, solid brass forged Concord Hinges make it possible to mount 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass shower doors without surrounding frames, so the door has an almost "floating" appearance. Their heavy-duty stainless steel springs allow the door to swing 90 degree in and 90 degree out. A friction cam allows the door to be firmly maintained in any position, except when within 15 degree of the closed position, where they are tapered to assist in centering the door.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width for 3/8" glass of 28" (711 mm) and maximum door width for 1/2" of 26" (660 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width for 3/8" glass of 34" (864 mm) and maximum door width for 1/2" of 30" (762 mm).
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
