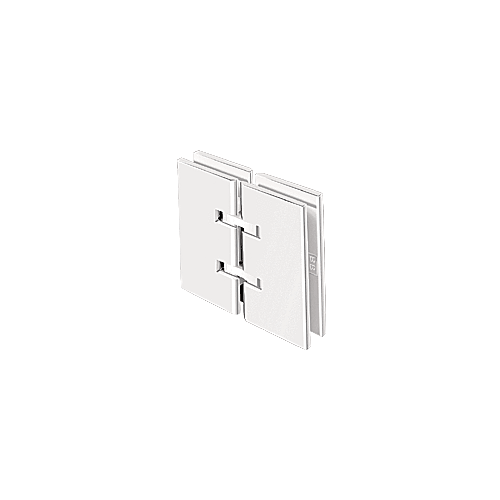

- Self-Centering Action
- Available in Several Beautiful Finishes
- 180 Degree Glass-to-Glass
- Use Monolithic Tempered Glass
2 Lb (907g)
3-1/2" (89 mm)
2" (51 mm)
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width for 3/8" glass of 28" (711 mm) and maximum door width for 1/2" of 26" (660 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width for 3/8" glass of 34" (864 mm) and maximum door width for 1/2" of 30" (762 mm).
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Special Features: Our original hinge offers years of reliability and elegance.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
