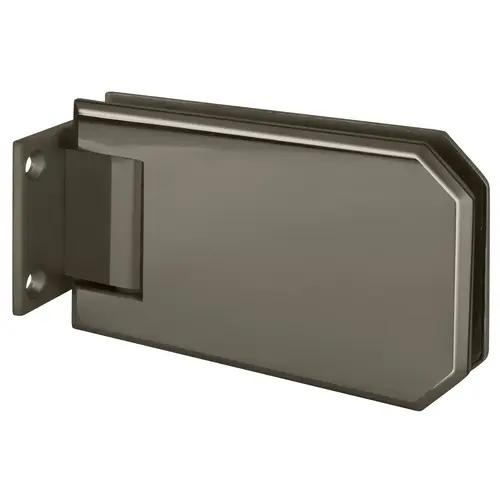

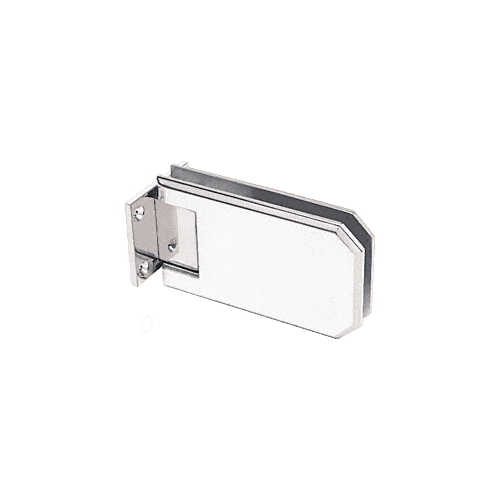

CRL ELT074PN Polished Nickel Elite 074 Series Wall Mount Short Back Plate Hinge
Item #: ELT074PN by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For Wider and Heavier Doors
- Ability to be Side Mounted at Top and Bottom Corners
- Wall Mount
- Use Monolithic Tempered Glass
5" (127 mm)
Maximum Door Width
5 Degree Pre-Set
Maximum Door Width - 3 Hinges (Inches)
Maximum Door Weight - 3 Hinges (Pounds)
Maximum Door Weight - 2 Hinges (Pounds)
Maximum Door Width - 2 Hinges (Inches)
The CRL Elite Series is a premium hinge for wider and heavier glass doors. Unlike most other hinges, the Elite can be side mounted on the top and bottom corners of the door, or anywhere in between. Containing a positive three-screw clamping system, the Elite Hinge incorporates a cut-out and through-stud that eliminates slippage. The Elite features the same 5 degree Reversible Pivot Pin used in our Geneva, Cathedral, Pinnacle, Roman, and Ultimate Series Hinges. It can also use the "GENP1N" Custom Pivot Pin for "off-angle" installations.
STANDARD REVERSIBLE PIVOT PIN: Each Roman Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Roman Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 34" (864 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (64 kg) with a maximum door width of 38" (965 mm).
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Has the ability to be side mounted at the top and bottom corners of the door, or anywhere in between. Corner mounting allows more glass exposure.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out and Hole Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
