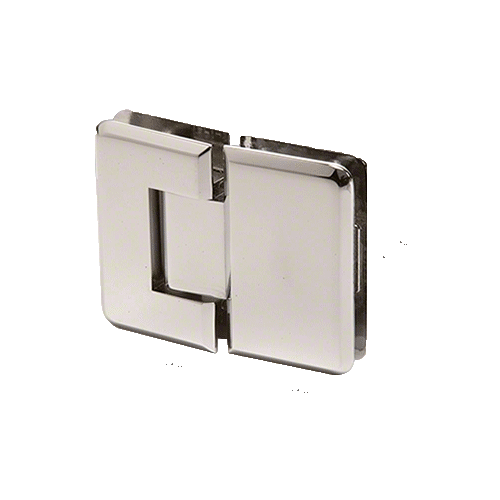

CRL P1N180PN Polished Nickel Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
Item #: P1N180PN by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- 180 Degree Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
- Available in Several Beautiful Finishes
- Self-Centering with Reversible 5 Degree Pivot Pin
- Three Year Warranty
2 Lb (907g)
3-1/2" (89 mm)
2-3/16" (56 mm)
STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Pinnacle Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
