Polished Nickel Roman Series Fixed Panel U-Clamp

Roll over image to zoom in

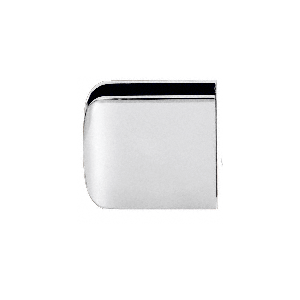

CRL R0M79PN Polished Nickel Roman Series Fixed Panel U-Clamp

Item #: R0M79PN by CR Laurence

Item Discontinued!
See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Use Monolithic Tempered Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps

Height

1-15/16" (49 mm)

Width

1-3/4" (44 mm)

Length

1-15/16" (49.2 mm)

Size

1-3/4" (44 mm) Wide x 1-15/16" (49 mm) High

Glass Thickness Range

5/16" to 1/2" (8 to 12 mm)

Finish

Polished Nickel

CRL Roman Series Fixed Panel U-Clamps are used to secure fixed panels of glass to walls, floors, and ceilings. The rounded corners give the clamp a "softer" design and creates a classy look. One mounting screw per clamp is included. They perform the same function as our Standard Fixed Panel U-Clamps. They are especially recommended for 1/2" (12 mm) thick glass installations where a hole drilling measurement of 1-1/2 times the glass thickness (from the edge of the glass to the closest edge of the hole) is required. Custom finishes are available on request by contacting DK Hardware Sales Shower Door Department.
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets and Mounting Screw Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).
