CRL Standard Movable Transom Clamps can be used to pivot transom panels above the shower door. Wall Mount and 180 Degree Glass-to-Glass Clamps can be used in any combination, depending upon the configuration of the enclosure. Replacement Nylon Washer is Cat. No. 90295A120.
Our Standard and 135 Degree Movable Transom Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of gaskets are included with each Clamp. Extra gaskets (Cat. No. UCG77) may be ordered separately. Glass fabrication required.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Gaskets and Mounting Screw
NOTE: Maximum transom size is 12" x 30" (305 x 762 mm) wide. Larger transoms require the use of Square or Beveled Transom Clamps, or pivot hinges used as movable transom clamps. Call for details.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

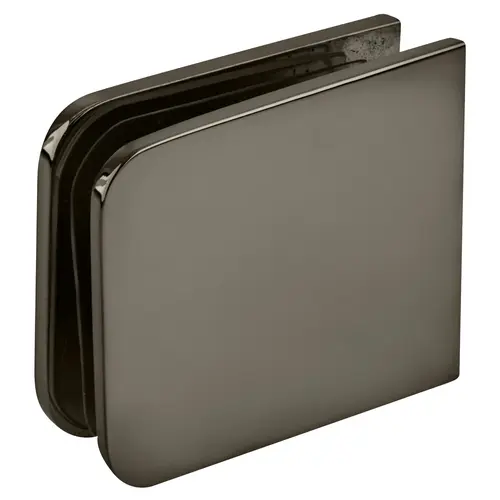

CRL GCB186PNClick To Copy Polished Nickel Traditional Style Movable Wall Mounted Transom Glass Clamp
Item #: GCB186PN by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Glass Transom Swivels to Allow Release of Steam
- Solid Brass Material
- Wall Mount, 180 Degree, and 135 Degree Models Available
Height
1-3/4" (44.5 mm)
Hole Size Required
5/8 or 3/4 in (16 to 19 mm)
Width
1-15/16 in (49 mm)
Wall Mount Size
1-15/16" (49 mm) Wide x 1-3/4" (44 mm) High
Finish
Polished Nickel
Mounting Type
Wall / Ceiling Mount
Material
Brass
Glazing Thickness
5/16 To 1/2
Finish/Color
Polished Nickel
Series
Traditional
Mounting Style
Wall / Ceiling Mount
Product Overview
CRL Standard Movable Transom Clamps can be used to pivot transom panels above the shower door. Wall Mount and 180 Degree Glass-to-Glass Clamps can be used in any combination, depending upon the configuration of the enclosure. Replacement Nylon Washer is Cat. No. 90295A120.
Our Standard and 135 Degree Movable Transom Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of gaskets are included with each Clamp. Extra gaskets (Cat. No. UCG77) may be ordered separately. Glass fabrication required.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Gaskets and Mounting Screw
NOTE: Maximum transom size is 12" x 30" (305 x 762 mm) wide. Larger transoms require the use of Square or Beveled Transom Clamps, or pivot hinges used as movable transom clamps. Call for details.
