This CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter Stainless Steel or Brass Tubing.*1-1/4" (32 mm) Diameter Stainless Steel (Cat. No. CD24X24BS125 Model only).
Offset: 3" (76 mm) Center-to-Center
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish
Metal Washers and Rubber Gaskets
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

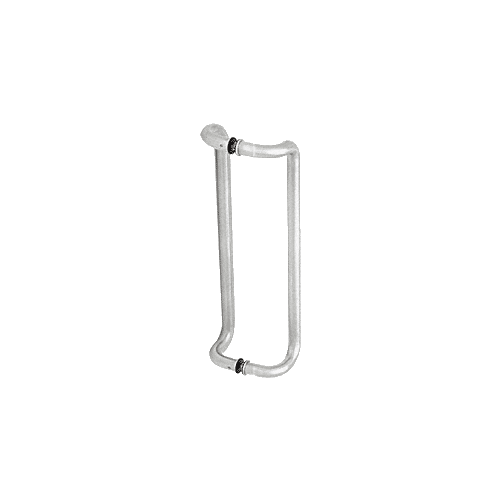

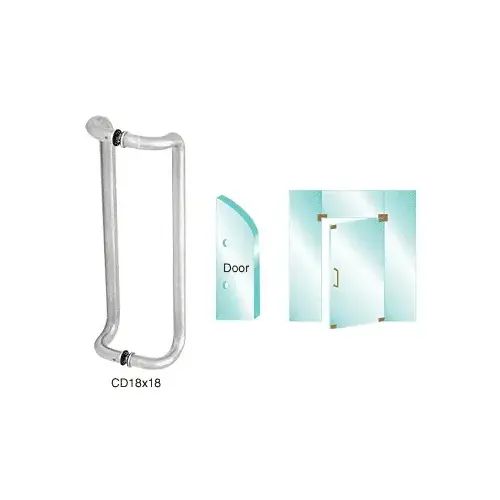

CRL CD18X18PS Polished Stainless 18" Glass Mounted Offset Pull Handle
Item #: CD18X18PS by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Stocked in Up to Five Architectural Finishes
Shipping Weight
4 lb (1.81kg)
Mounting Holes Center-to-Center
18" (457 mm)
Finish
Polished Stainless
Overall Length
18
Material
Stainless Steel
Center to Center
18
Glazing Thickness
3/8 To 3/4
Finish/Color
Polished Stainless Steel
Style Washers
Yes
Mounting Hole Diameter (Inches)
5/8
Style Washer Diameter (Inches)
1-1/4
Diameter
1"
Mounting Type
Back-To-Back
Mounting Center To Center (Inches)
18
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Center To Center
18 in. (457 mm)
Style Washer Diameter
1-1/4 in. (32 mm)
Product Overview
This CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter Stainless Steel or Brass Tubing.
Offset: 3" (76 mm) Center-to-Center
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish
Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
