30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Custom Built to Your Specifications for Fit and Finish
- Featuring 4" (102 mm) Square DR4S Series Door Rails
- Panels Hung From End Point, Minimizing Obstruction
Full Bi-Fold Door Configuration
Door Bottom Rail (1/2 Inch Glass)
Door Top Rail (3/8 Inch Glass)

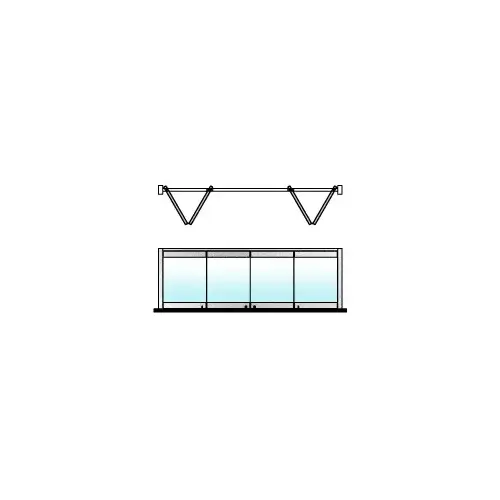

Single Track Full Leaf 2 Panels Left 2 Panels Right
Door Top Rail (1/2 Inch Glass)
Door Bottom Rail (3/8 Inch Glass)
Polished Stainless Steel
Maximum panel width
CRL Overhead Track Full Panel Bi-Fold Door Systems are available in four configurations, with a maximum of three panels on each side of the opening. The panels are joined by hinged end caps, and are hung from a single Cat. No. 0TCA Carriage Assembly at the panel's end point.
Use the Cat. No. 0TBR Series Guide Channel supplied with each order to prevent the panels from dragging during operation. Maximum panel weight not to exceed 170 lbs. (77 kg). Maximum panel width is 39" (990 mm). Minimum panel width is 15" (381 mm).
NOTE: Available with 4" (102 mm) square rails, and by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
